The Asphalt Float Test Apparatus is a professional testing device used to determine the buoyancy performance of asphalt and related materials under specified temperature conditions. The equipment is stable in operation, provides reliable test results, and strictly meets standard requirements, making it an important testing instrument for asphalt quality control and performance evaluation.

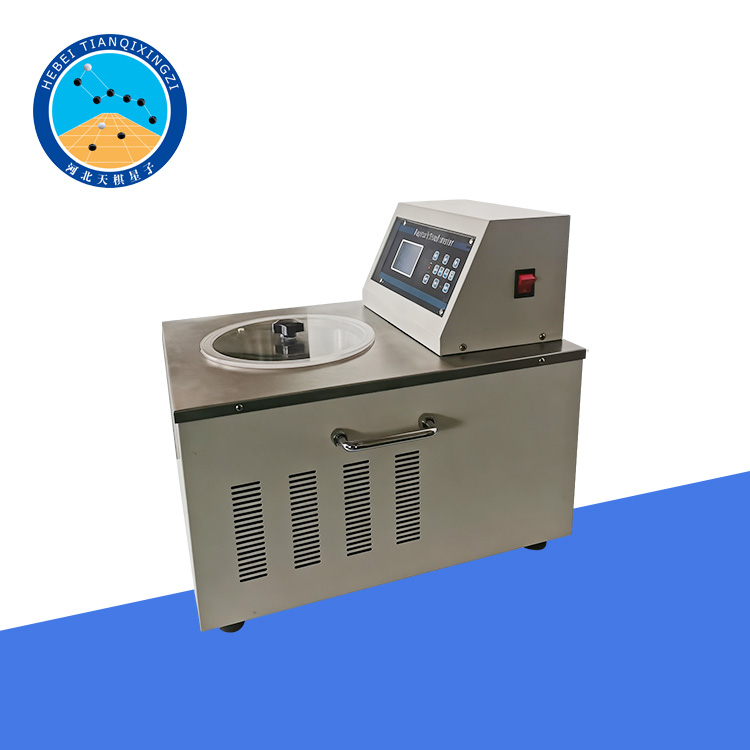

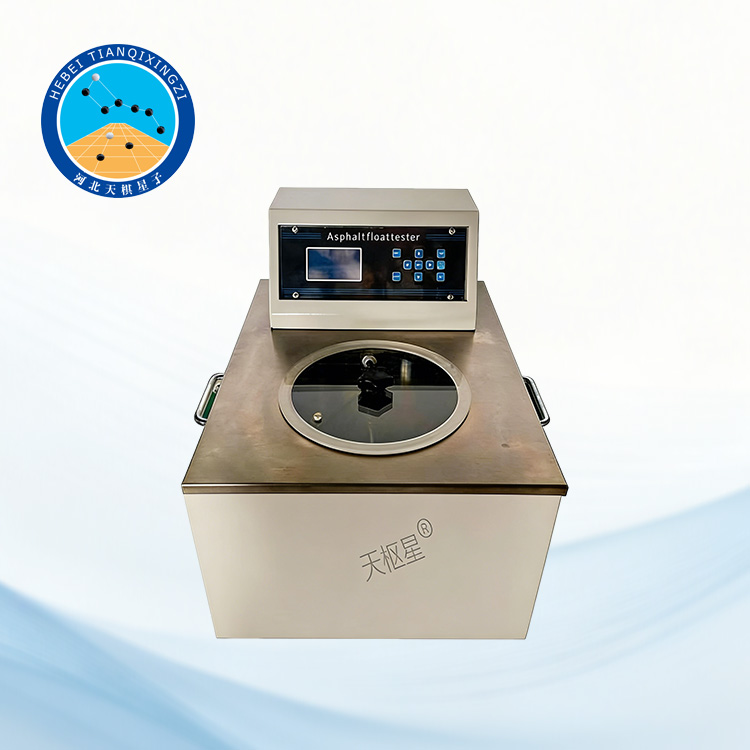

Asphalt Float Test Apparatus

Model:TD631-1

I. Product Introduction

The Asphalt Floatability Tester is designed and manufactured by Hebei Tianqixingzi Inspection Equipment Co., Ltd. in accordance with the requirements of T 0631-1993 "Asphalt Floatability Test" in the People's Republic of China industry standard JTG 3410-2025 "Standard Test Methods of Asphalt and Asphalt Mixture for Highway Engineering". It also references ASTM D139 and AASHTO T50 international standards. This instrument is used to determine the floatability of residues from distilled slow-setting liquid petroleum bitumen and coal tar pitch, as well as other related materials.

The float test of asphalt refers to the time, expressed in seconds (s), required for a specimen placed in a specified float apparatus and immersed in a water bath at a controlled temperature to gradually soften until it is broken by water flow. Unless otherwise specified, the test temperature for residues of distilled liquid petroleum bitumen is 50 °C, while the test temperature for coal tar pitch is 32 °C or 50 °C.

II. Technical Features

1. Employs a new type of refrigeration compressor and a high-precision intelligent temperature control system, achieving a temperature control accuracy of ±0.1 ℃ and high stability.

2. The float and copper tubing are manufactured strictly according to standards, with dimensions, weight, and structure fully conforming to specifications, ensuring accurate and reliable test data.

3. Equipped with a constant temperature water bath function, it can be used as a standard constant temperature water bath when not conducting float tests, improving equipment utilization.

4. With a reasonable structural design, simple operation, and stable performance, it is suitable for continuous laboratory testing environments.

III. Technical Parameters

1. Power Supply: AC 220V (-5%～+10%), 50Hz;

2. Water Bath Capacity: (370×300×300)mm (Length×Width×Height);

3. Applicable Water Volume: 28L;

4. Heating Device: Electric heater, power 1300W.

5. Refrigeration unit: New type of refrigeration compressor;

6. Temperature control range: 5℃～80℃;

7. Temperature control accuracy: ±0.1℃;

8. Floating disc: Wall thickness 1.4mm±0.1mm, weight 37.9g±0.2g;

9. Copper pipe: Wall thickness 1.4mm±0.1mm, weight 9.8g±0.2g;

10. Ambient temperature: ≤30℃;

11. Relative humidity: ≤85%;

12. Total power consumption: Not exceeding 2000W;

13. Net weight: 30kg;

14. Dimensions: (750×540×580) mm (Length×Width×Height)
