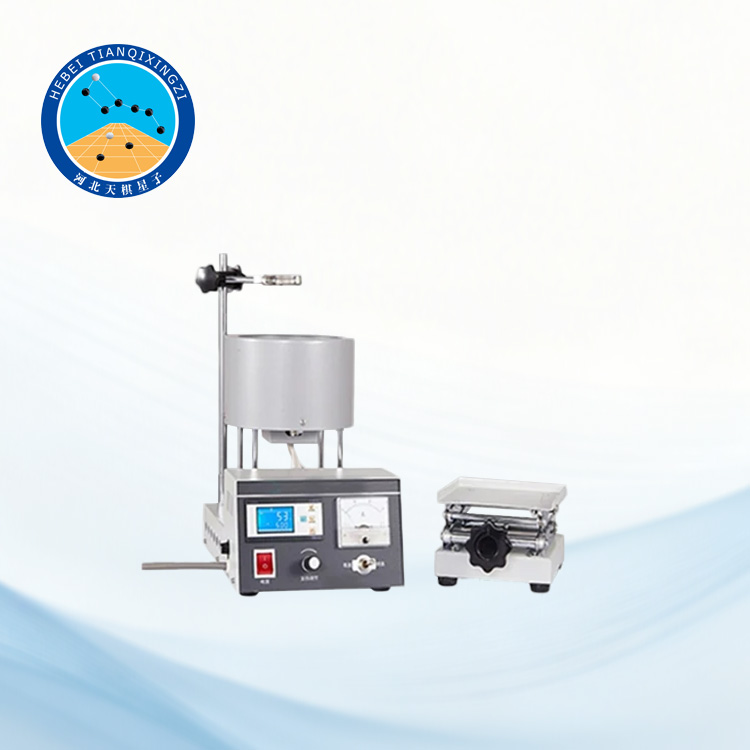

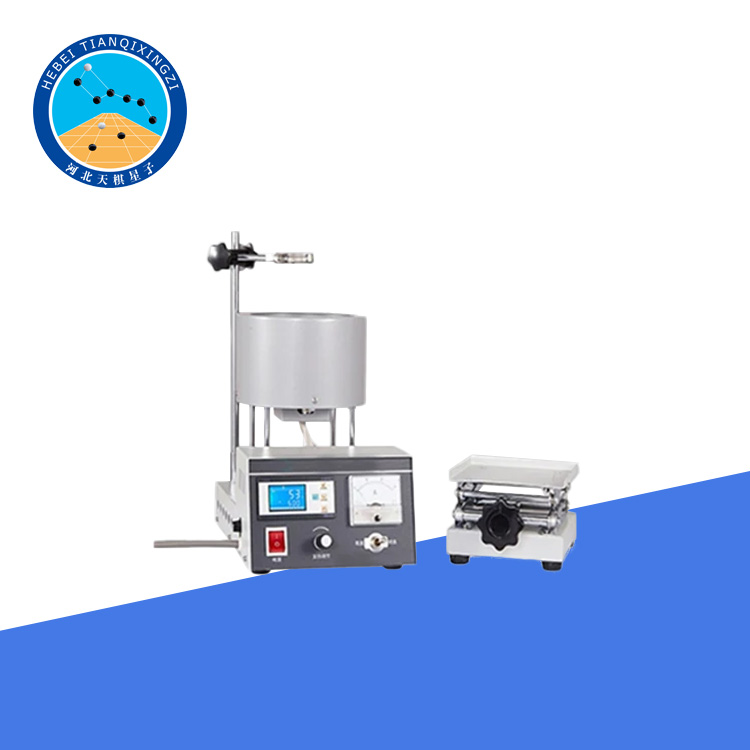

Asphalt Wax Content Pyrolysis Furnace

Model:TD615-L

I. Product Introduction

The Asphalt Wax Content Testing Dedicated Pyrolysis Furnace is a high-temperature experimental device used to determine the wax content in asphalt. It is widely used in highway engineering laboratories, research institutes, third-party testing agencies, and asphalt material production enterprises. This equipment is designed and manufactured strictly according to JTG 3410 standard and references international testing methods such as EN 12606-1 and ASTM D721, meeting the testing needs under different domestic and international standard systems.

The wax content in asphalt is a key indicator affecting its high-temperature stability, low-temperature crack resistance, and adhesion to aggregates. Accurate determination of wax content is crucial for evaluating asphalt quality, optimizing pavement formulations, and ensuring the long-term durability of roads.

II. Technical Parameters

1. Operating Power: AC (220±10%) V, 50 Hz

2. Heating Power of Electric Furnace: 2000 W

3. Heating Control Method: Solid-state voltage regulation module stepless voltage regulation control

4. Constant Temperature Control Range: 550°C ±10°C

5. Ambient Temperature Requirement: ≤35°C

6. Relative Humidity: ≤85%

7. Total Power Consumption: ≤2100 W

8. Dimensions:

Heating Furnace: 220 × 330 × 400 mm (L × W × H)

Lifting Platform: 150 × 175 × 120 mm (L × W × H)

9. Net Weight: Approximately 5 kg

III. Main Technical Features:

1. This instrument uses electric heating, which can maintain a constant temperature of 550°C ± 10°C, and the heating power is continuously adjustable to meet the needs of sample distillation.

2. This instrument features a design where the heating furnace and lifting platform are independent yet can be combined into a single unit during use, making it convenient to operate.

3. The outer ring of the heating furnace adopts a user-friendly heat insulation design to reduce the impact of heat radiation on the operator.

4. The temperature controller uses LCD display and single-chip microcomputer control technology, which is advanced, has low overshoot, and achieves a short constant temperature of 550°C ± 10°C at room temperature.
