The instrument is a laboratory instrument designed to accurately measure the softening point of asphalt and bitumen using the ring-and-ball method. It features automated heating, precise temperature control, and digital display, ensuring consistent, reliable results for quality control, research, and material evaluation.

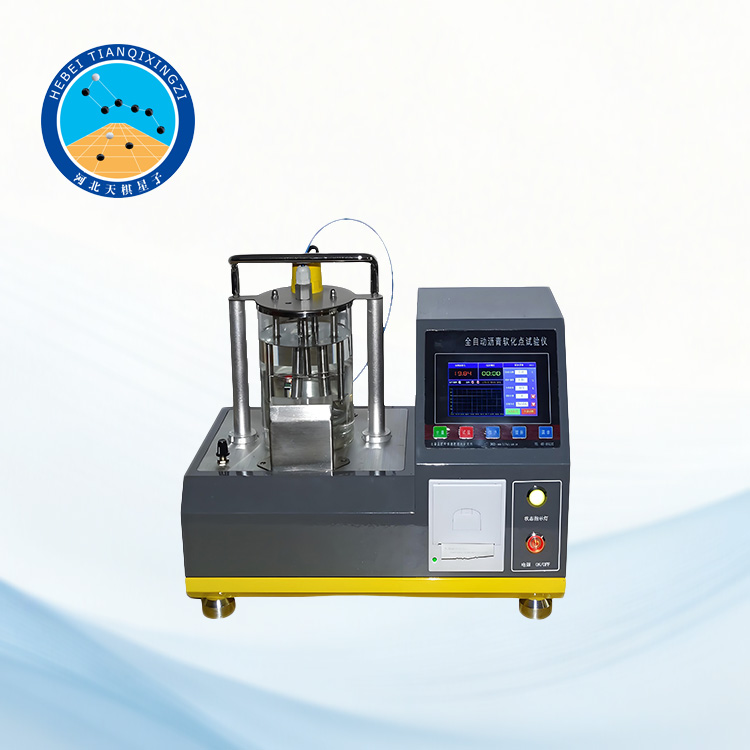

Asphalt Automatic Ring and Ball Softening Point Tester with Big Touch Screen

Model:LQ-FH0610D

I.Product Description

This instrument conforms to GB/T 4507,JTG 3410-2025/T 0606-2025,ASTM D36/D36M,AASHTO T53,EN 1427,and ISO 4625(Ring-and-Ball)standards.It is suitable for determining the softening point of road petroleum asphalt,polymer-modified asphalt,liquid petroleum asphalt,coal tar distillation residue,emulsified asphalt evaporation residue,road marking paint,and certain resin products.It is an ideal instrument for asphalt production enterprises,highway and bridge construction enterprises,related universities,and research institutes.

II.Main Technical Features:

1.The water bath test at 5~90℃can be selected,and the glycerol test at 35~+160℃can also be performed

2.Adopt microcomputer control,automatic stirring,linear heating,and the heating rate maintains the standard requirement of 5℃/min;

3.A laser beam sensor is used to automatically detect the softening point value of asphalt softening 25.4mm.After the test is completed,the test results are automatically displayed and printed;

4.The heating rate is automatically recorded,and the heating record per minute can be queried through the query function;

5.Features a 4.3-inch LCD touchscreen with a bilingual Chinese and English operating system.

6.The beaker is made of high-temperature resistant glass,and the dimensions of the steel ball positioning ring and steel balls meet standard requirements.

7.Heating method:Microcrystalline ceramic bottom heating conforms to the new standard.

III.Main parameters:

1.Input power:AC(220±10%)V,50Hz

2.Temperature resolution:0.1°C

3.Measurement Range:

When the sample softening point is≤80°C:0℃~90℃,using distilled water as the heating medium.

When the sample softening point is>80℃:70℃~160℃,using glycerol as the heating medium.

4.Heating rate:Automatically adjusted to(5±0.5)℃/min three minutes after the start of the test.

5.Heating power:650W

6.Medium stirring:Magnetic stirring,stirring speed 0-300 r/min,stepless speed adjustment

7.Effective volume of beaker:1000m³

8.Data display:Touchscreen LCD

9.Communication interface:RS-232C

10.Applicable ambient temperature:15℃~35℃

11.Relative Humidity:≤85%

12.Total Power Consumption:<700W

13.Dimensions:43x27x38cm(Length x Width x Height)

14.Total Weight:7Kg
