The Cement Mortar Compaction Vibrating Table is designed for the uniform compaction and preparation of cement mortar specimens for cement strength testing. Complying with JC/T 682, GB/T 17671, and ISO 679, it provides stable and consistent vibration to ensure reliable, repeatable test results in cement and construction material laboratories.

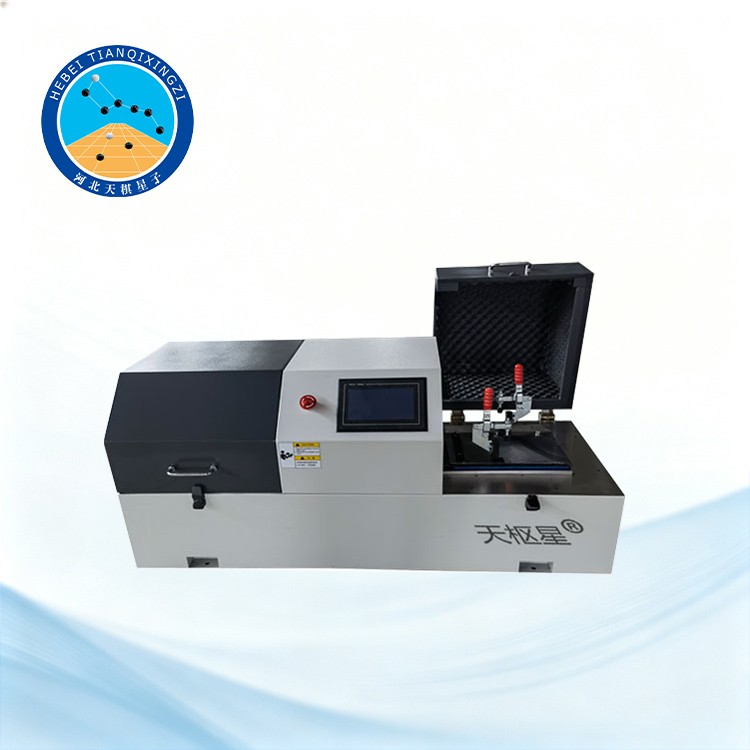

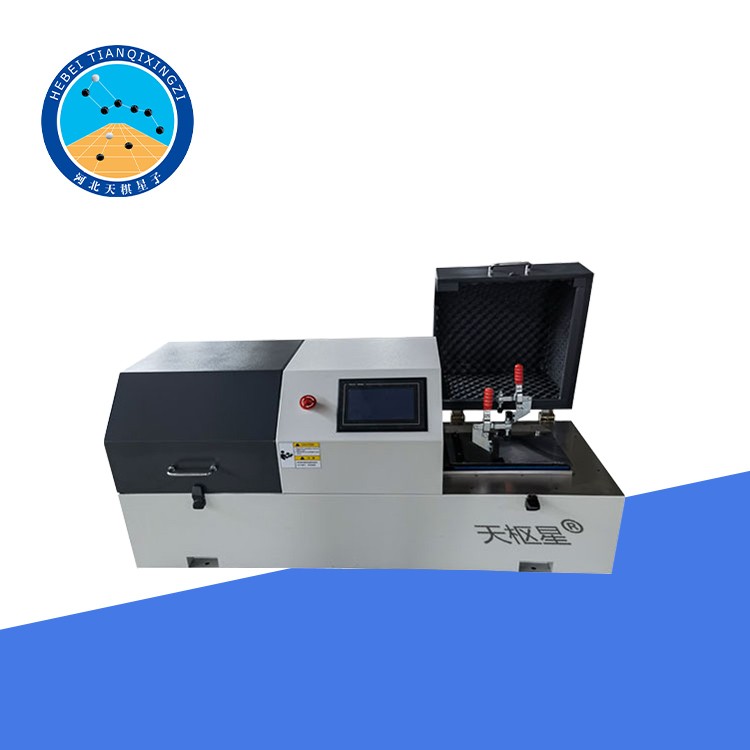

Cement Mortar Compaction Vibrating Table

Model:TDJC682-2

I. Product Application

The Cement Mortar Compaction Vibrating Table is designed for the preparation and compaction of cement mortar specimens used in cement strength testing. It was developed in accordance with China’s cement mortar strength testing methods, which are equivalent to the ISO 679 international standard. The instrument complies with the requirements of JC/T 682, GB/T 17671, and ISO 679, Methods of Testing Cements — Determination of Strength, and is specifically designed for the standardized molding and compaction of cement mortar test specimens.

It provides consistent and uniform compaction, helping ensure reliable and repeatable test results in cement strength testing laboratories.

II.ProductsTechnical Specifications

1. Total Mass of Table Assembly (including the arm, mold clamping frame, etc.): 13.75 kg ± 0.25 kg

2. Total Weight of Vibrating Assembly: 20 kg ± 0.5 kg

3. Vibration Amplitude (Drop Distance): 15 mm ± 0.3 mm

4. Time for 60 Vibrations: 60 s ± 2 s

5. Distance from the Center of the Table Plate to the Center of the Arm Shaft: 800 mm

6. Motor speed: 60 rpm

7. Motor power: 90W

8. Power supply: AC220V 50Hz

9. Dimensions (L×W×H): (124×52×80) cm

10. Net weight: ≈90 kg

III. Working Principle

The Cement Mortar Compaction Vibrating Table mainly consists of an arm, front and rear frames, table plate, motor, proximity switch, and programmable control system.

During operation, the motor drives the cam to rotate, causing the vibrating assembly to rise. After reaching the specified height, the assembly drops under its own weight, generating controlled vibration. The resulting vibration compacts the cement mortar uniformly under the applied mechanical force.

The instrument is equipped with an LCD touchscreen control system. The vibration cycle is automatically controlled, and the machine stops automatically after 60 vibrations.

IV. Key Features

1. Uniform Compaction: Provides stable and consistent vibration to achieve uniform compaction of cement mortar specimens.

2. Automatic Operation: The programmable control system automatically completes the specified 60-vibration cycle and stops when the test is finished.

3. Touchscreen Control: An intuitive LCD touchscreen provides convenient operation and clear control of the vibration process.

4. Stable Vibration Performance: The precision cam-driven mechanism ensures a consistent vibration amplitude and reliable specimen preparation.

5. Robust Construction: The rigid frame and durable mechanical components are designed for long-term operation in laboratory environments.

6. Standard-Compliant Design: Manufactured according to the requirements of JC/T 682, GB/T 17671, and ISO 679 for cement mortar specimen preparation and cement strength testing.

V. Applications

The Cement Mortar Compaction Vibrating Table is widely used in cement testing laboratories, construction material laboratories, quality control laboratories, research institutions, and building material testing centers.

It is primarily used for the molding and compaction of cement mortar specimens before strength testing. The equipment is suitable for laboratories involved in cement quality control, cement product development, construction material research, and standardized cement strength testing.

By providing controlled and repeatable compaction conditions, the vibrating table helps minimize variations caused by manual specimen preparation and contributes to more consistent and reliable test results.

VI. Why Choose This Cement Mortar Vibrating Table?

Designed specifically for cement mortar specimen preparation, the Cement Mortar Compaction Vibrating Table offers a practical solution for standardized laboratory testing. Its automatic 60-cycle operation, touchscreen control, stable vibration mechanism, and robust construction make it suitable for routine cement strength testing and quality control applications.

It is an ideal choice for cement manufacturers, construction material testing laboratories, engineering laboratories, universities, research institutes, and quality inspection organizations.
