This fixture is suitable for testing various wood products, including solid timber, structural wood, and other wood-based materials. It is widely used in wood research laboratories, universities, timber quality inspection institutions, and building material testing centers.

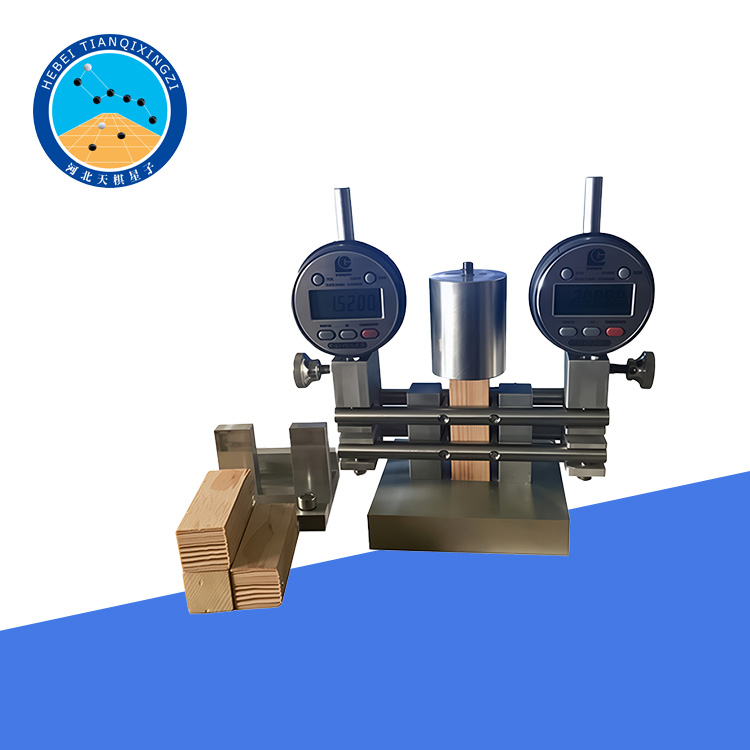

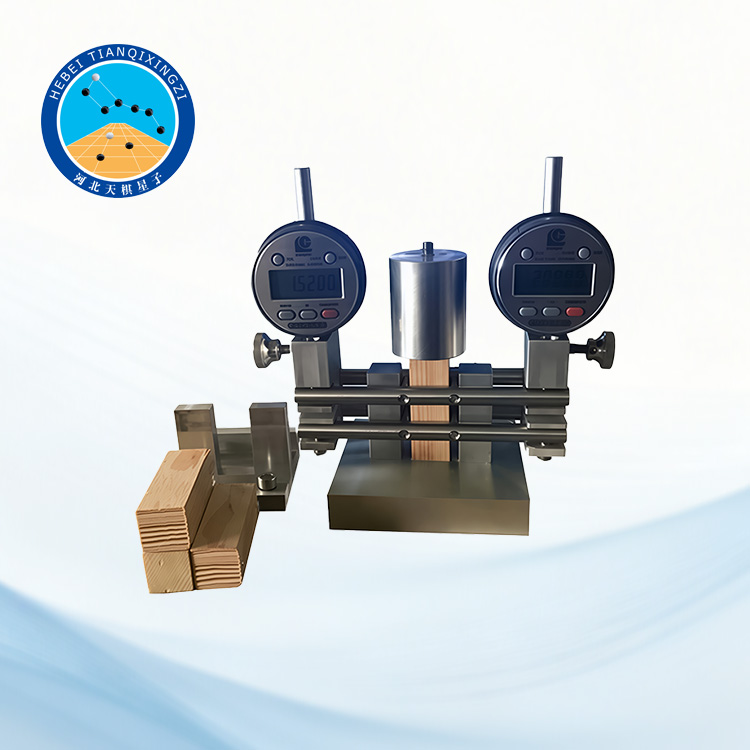

Timber Compression Test Fixture for Modulus of Elasticity Testing

Model:TD15777-J

I. Product Overview

The Timber Compression Test Fixture is a specialized testing accessory designed for determining the modulus of elasticity (MOE) of wood under compression parallel or perpendicular to grain. It is mainly used together with a universal testing machine to accurately measure the deformation behavior of wood specimens under compressive loading.

Applicable Standards:GB/T 15777-2017, GB/T 1943-2009, ASTM D143, ISO 13061 Series, EN 408

II. Product Features and Advantages

1. High Dimensional Accuracy

The fixture is manufactured with precision machining technology. The dimensions meet testing standard requirements, with dimensional tolerance controlled within 1%, ensuring reliable specimen installation and repeatable test results.

2. Compatible with Universal Testing Machines

The fixture is designed to work with various types of mechanical testing machines, including universal testing machines and wood testing systems.

The connection interface can be customized according to different testing machine requirements, improving compatibility with laboratory equipment worldwide.

3. Convenient Specimen Installation

The fixture is equipped with an installation auxiliary device, allowing the specimen to be positioned accurately before testing.

This design helps:

Reduce installation errors;

Improve testing efficiency;

Ensure consistent loading conditions.

4. Stable Structure and Long Service Life

The fixture is manufactured from stainless steel and aluminum alloy, providing:

Excellent mechanical strength;

Good corrosion resistance;

Stable performance during repeated testing.

It is suitable for long-term laboratory use.

III. Technical Specifications

Compatible Specimen Size: 20 × 20 × 60 mm / 20 × 20 × 90 mm

Measuring Device: Dial Indicators (2 pcs)

Fixture Dimensions: 141 × 100 × 70 mm

Fixture Connection: Customized according to testing machine

Loading Head Size: Φ40 × 50 mm

Installation Auxiliary Fixture: 70 × 61 × 50 mm

Material: Stainless Steel + Aluminum Alloy

IV. Working Principle

During compression testing, the wood specimen is installed in the fixture and compressed by a universal testing machine. Within the proportional limit of the material, the relationship between applied stress and corresponding strain is measured.

The modulus of elasticity is calculated according to:

E = Stress / Strain

where:

E = Modulus of Elasticity (MOE)

Stress = Applied compressive load per unit area

Strain = Deformation ratio of the specimen

The fixture ensures stable specimen positioning and accurate deformation measurement during the compression process, helping obtain reliable test results.

V. Why Choose This Timber Compression Test Fixture?

Compared with general compression testing accessories, this fixture provides a dedicated solution for timber mechanical testing. It improves specimen positioning accuracy, simplifies test preparation, and ensures reliable deformation measurement when determining the compression modulus of elasticity of wood.
