The 3000kN digital compression testing machine is mainly used to test the compressive strength of concrete, cement, bricks, tiles, refractory materials, and other building materials. It is widely used in building materials testing laboratories, construction companies, quality inspection centers, university research institutions, and concrete production enterprises.

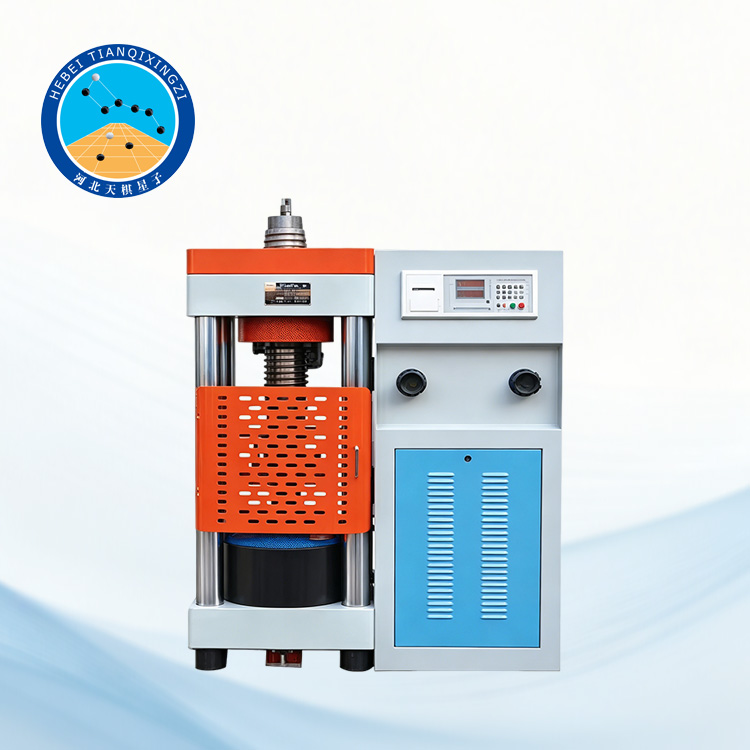

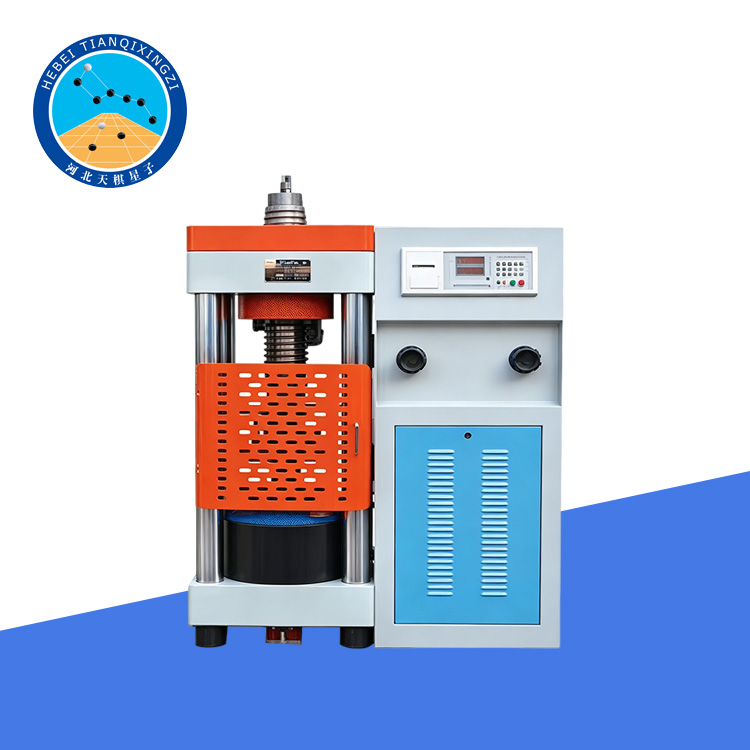

Digital Compression Testing Machine

Model:TDYE-3000LD

I. Product Introduction

This equipment conforms to GB/T 50081 "Standard for Test Methods of Mechanical Properties of Ordinary Concrete". The entire machine adopts a four-column high-rigidity structure, equipped with a digital display system, data storage function, and manual hydraulic loading control system. It is easy to operate and has stable performance, making it an ideal replacement product for current material compressive strength testing equipment.

The equipment is available in different tonnage models: 1000kN / 2000kN / 3000kN. Customization and OEM services are supported, and configurations can be adjusted according to customer needs or standards.

II. Main Applications

This equipment is suitable for compressive strength testing of the following materials:

Concrete cube and cylinder specimens

Cement specimens

Clay bricks and concrete blocks

Refractory materials

Natural stone

Various building materials

Other non-metallic materials (compressive strength testing)

III. Product Features

1. High Load Capacity: Maximum test force up to 3000kN, meeting the testing needs of various high-strength materials.

2. High-Precision Measurement: Test force measurement accuracy reaches Class 1 standard, ensuring accurate and reliable test results.

3. Digital Display System: Real-time display of test force values; readings are intuitive and clear, and operation is simple.

4. Data Storage Function: Automatically stores test data for easy retrieval and analysis later.

5. Stable Hydraulic Loading: Employs a manual hydraulic system, ensuring a smooth and reliable loading process.

6. Four-Column High-Rigidity Structure: Robust and durable structure with strong resistance to deformation, guaranteeing long-term stable operation.

7. Supports laboratory networking: Can connect to laboratory management systems for centralized data management.

8. Easy to operate: User-friendly design reduces operational difficulty and improves testing efficiency.

IV. Technical Parameters

Maximum Test Force: 3000 kN

Accuracy Class: Class 1

Relative Error of Indicated Force: ≤ ±1%

Force Measuring Range: 10%–90% FS (full range, no grade division)

Frame Structure: Four-column structure

Distance Between Columns: 310 mm

Distance Between Upper and Lower Compression Platens: 320 mm

Compression Platen Size: Upper/Lower: 260 × 250 mm

Piston Stroke: 50 mm

Piston Movement Control: Single-acting hydraulic cylinder

Overall Dimensions (L×W×H): 1030 × 650 × 1600 mm

Packing Dimensions (L×W×H): 1200 × 770 × 1720 mm

Total Power: 1 kW

Weight: 1200 kg

V. Application Industries

This equipment can be applied to many industries, such as: Building material testing laboratories; Quality inspection agencies and third-party testing centers; Universities and research institutes; Concrete mixing plants; Cement production enterprises; Building material manufacturers; Highway and railway engineering units.
