Microcomputer-Controlled Universal Testing Machine (UTM) for tensile, compression, bending, and shear testing of metals, plastics, rubber, and composite materials. Equipped with high-accuracy load sensing, real-time LCD display, data storage, curve analysis, and optional extensometer, it is widely used in laboratories, universities, research centers, and quality control departments.

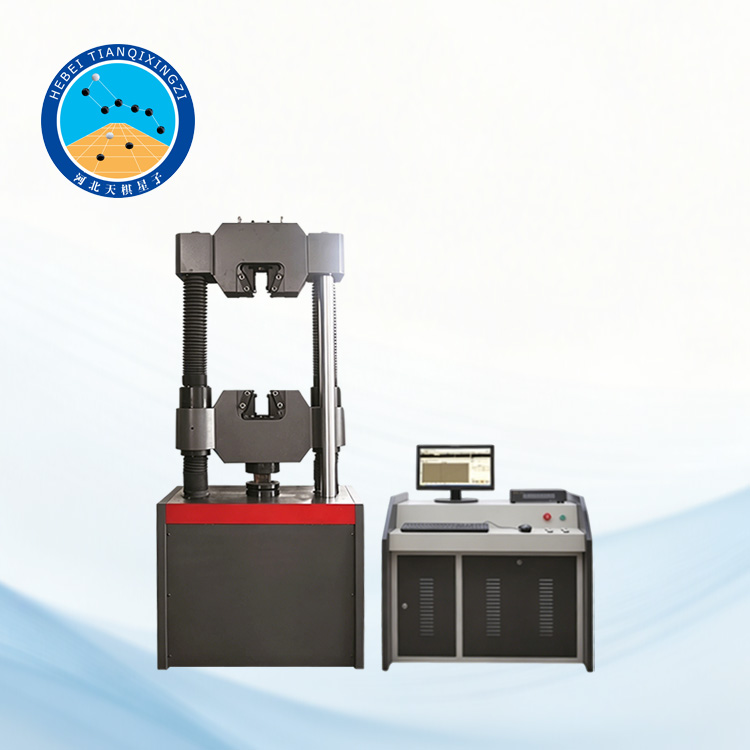

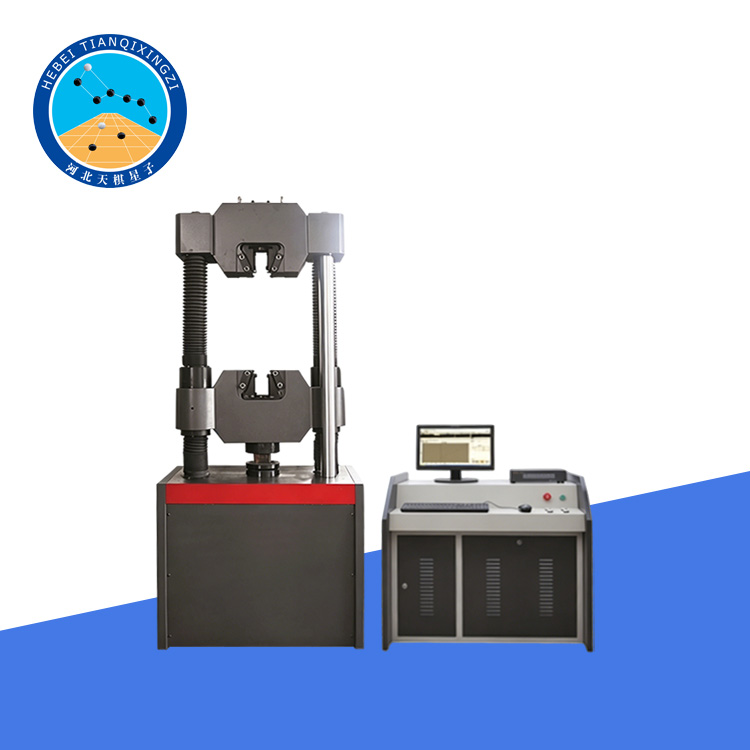

Microcomputer-Controlled Universal Testing Machine

Model:TDWE-2000B

I. Product Introduction

The Microcomputer-Controlled Universal Testing Machine is designed for conducting tensile, compression, bending, and shear tests on a wide range of metallic and non-metallic materials. It adopts a high-precision load sensor for force measurement, while the LCD display provides real-time monitoring of test force, loading rate, upper and lower yield points, and the force-time curve.

The machine features intuitive operation, high accuracy, and automatic curve scaling according to changes in load and time, ensuring clear and efficient test analysis. It can be equipped with an extensometer and displacement measurement system for more comprehensive material deformation testing.

The system is capable of storing up to 1,000 test records, which can be conveniently retrieved by specimen number. Additional features include loading rate tracking, overload protection, power failure protection, real-time clock function, and a built-in micro printer for immediate test result output.

A communication interface is provided for connection with a computer system. The machine can also be connected to a local area network (LAN), enabling remote transmission and output of test data and curves for centralized data management.

Applicable Standards:

ISO 7500-1: Metallic Materials — Verification of Static Uniaxial Testing Machines

ASTM E4: Standard Practices for Force Verification of Testing Machines

II. Technical Parameters

Maximum Test Force: 2000 (KN)

Indication Accuracy of the Testing Machine: Class 1

Maximum Distance Between Tensile Clamps (including piston stroke): 750 mm

Flat Specimen Clamping Thickness: 15-50 mm

Round Specimen Clamping Diameter: Φ20-60 mm

Maximum distance between upper and lower pressure plates: 550mm

Distance between two support points during bending test: 50-300mm

Working piston stroke: 200mm

Oil pump motor power: 1.5Kw

Moving beam lifting motor power: 0.55Kw

Measuring range: 0-2000 KN

Total packing weight: 6.5T

Installation Details:

①Foundation drawing

②Anchor bolt installation and first concrete pouring

③Installation, commissioning, and leveling

④Second concrete pouring

III. Product Advantages

Maximum test force up to 2000kN, suitable for testing high-strength materials;

First-class measurement accuracy, reliable test results;

Real-time display of test data and curves on LCD screen;

Supports data storage and retrieval of 1000 sets of data;

Supports extensometer and displacement measurement expansion;

Built-in mini printer for on-site printing;

Supports computer communication and LAN data transmission;

Comprehensive overload and power failure protection functions;

Widely used in laboratories, research institutes, quality inspection agencies, and industrial enterprises.
