The Concrete Compression Testing Machine is designed to determine the compressive strength of concrete, cement, bricks, blocks, and other construction materials. Featuring hydraulic loading, high accuracy, and stable performance, it provides reliable test results for laboratories, quality control departments, research institutions, and construction material manufacturers. Available in 2000kN and 3000kN capacities, it is suitable for a wide range of compression testing applications.

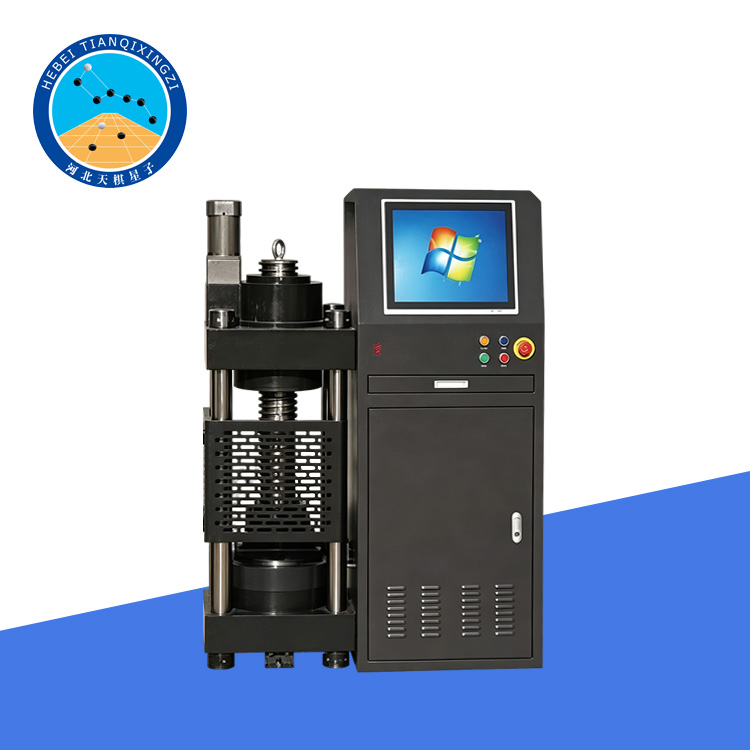

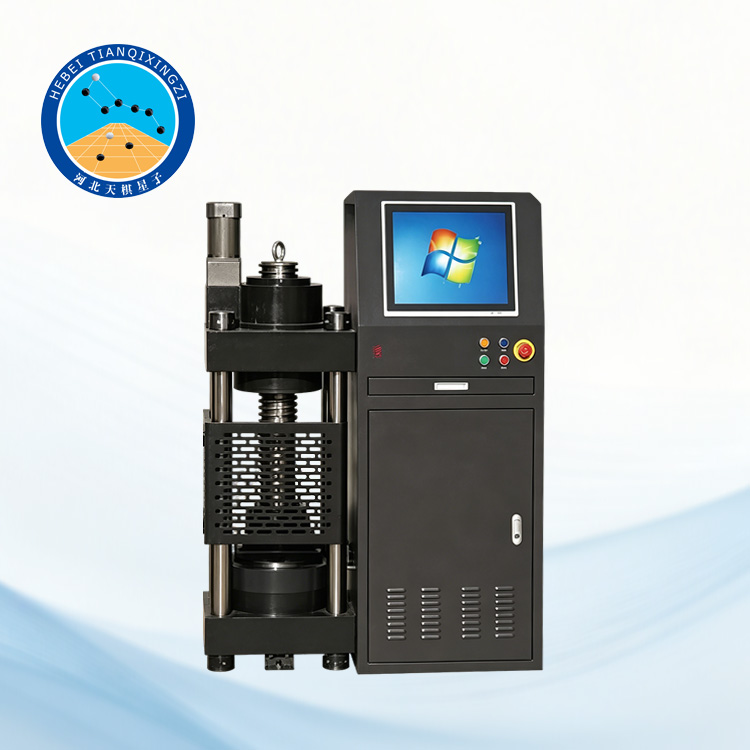

Concrete Compression Testing Machine

Model:TDYE-2000D

I. Product Introduction

This testing machine adopts an integrated design of the main unit and control system, featuring a compact structure, small footprint, and easy operation. The equipment offers stable loading, reliable operation, and high measurement accuracy, meeting the requirements for compressive strength testing of concrete, cement, and other building materials. The equipment complies with relevant standards such as the "Standard for Test Methods of Mechanical Properties of Ordinary Concrete" and is widely used in construction engineering quality testing institutions, research institutes, university laboratories, and building material production enterprises.

Reference or applicable standards:

ISO 7500-1: Verification and Calibration of Testing Machines

ASTM E4: Force Verification of Testing Machines

EN ISO 7500-1: Verification and Calibration of Testing Machines

II. Product Features

Integrated design of the main unit and control system, saving floor space;

Hydraulic loading system ensures uniform force application and stable loading process;

High-precision force measurement system provides accurate and reliable test results;

Simple operation with intuitive and convenient data reading;

Robust and durable structure ensures long-term stable performance;

Suitable for compressive strength testing of concrete, cement, bricks, blocks, and other materials.

III.Technical Parameters

1. Maximum test force

2000kN model: 2000kN

3000kN model: 3000kN

2. Force measurement range

2000kN model: 200–2000kN

3000kN model: 300–3000kN

3. Piston maximum stroke

Both models: 50mm

4. Indication accuracy

Both models: ≤ ±1.0%

5. Motor power

Both models: 0.75kW

6. Main machine dimensions (L × W × H)

2000kN model: 1200 × 500 × 1200 mm

3000kN model: 1200 × 400 × 1400 mm

7. Net weight

2000kN model: 850 kg

3000kN model: 1100 kg

IV. Application Areas

This equipment is mainly used for testing the compressive strength of building materials, including:

Compressive strength testing of concrete specimens;

Compressive strength testing of cement specimens;

Compressive strength testing of wall materials such as bricks and blocks;

Compression performance testing of other non-metallic materials.
