The Microcomputer-Controlled Electronic Flexural & Compression Testing Machine is a high-precision testing instrument designed for the flexural and compressive strength testing of cement, clay bricks, refractory bricks, and similar building materials.

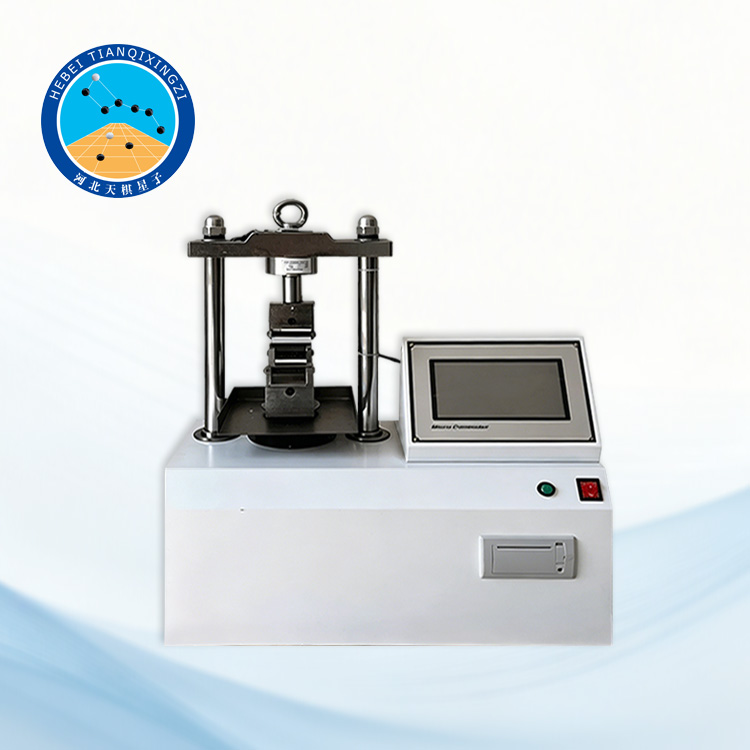

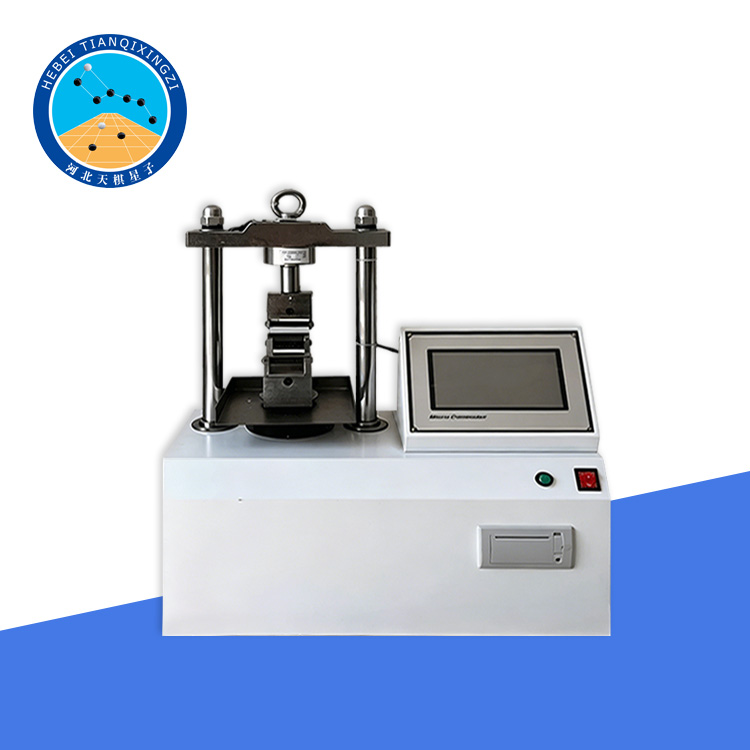

Microcomputer Flexural & Compression Testing Machine

Model:TDYDW-10

I. Product Introduction

The machine adopts a stepper motor as the power source, driving a precision ball screw system to ensure stable and accurate loading. It is equipped with the EBC-1000 microcomputer color-screen controller, enabling fully automatic control of the testing process.

During operation, the system can automatically load according to relevant international standards and display real-time data including load, loading speed, time, and test curves. It also supports load-holding function, automatic data storage, and test result query and printing.

Reference or applicable standards: ASTM C109/C109M, EN 196-1, ASTM C348, ASTM C349

II. Technical Parameters

Maximum Test Load: 10 kN

Load Resolution: 1/200,000

Relative Error of Indication: ±1% (within 1%–100% range)

Repeatability Error: ≤1%

Loading Speed Range: 5–300 N/s

Testing Space (H × W): 180 × 165 mm

Maximum Stroke: 40 mm

Loading Method: Motorized (Electric Loading)

Power Supply: 220V ±10%, 50Hz (with reliable grounding required)

Power Consumption: 80 W

III. Key Features

Microcomputer-controlled automatic testing system;

Stepper motor with precision ball screw loading;

Real-time display of load, speed, time, and curve;

Automatic load-holding function;

Data storage, query, and printing functions;

Stable performance with low noise operation;

Energy-saving and environmentally friendly design;

User-friendly interface with color-screen controller.
