This asphalt film heating oven is suitable for measuring the quality changes of road petroleum asphalt and polymer-modified asphalt films after heating. As needed, it can also measure changes in properties such as penetration, ductility, softening point, and viscosity of the residue after film heating to evaluate the aging resistance of asphalt.

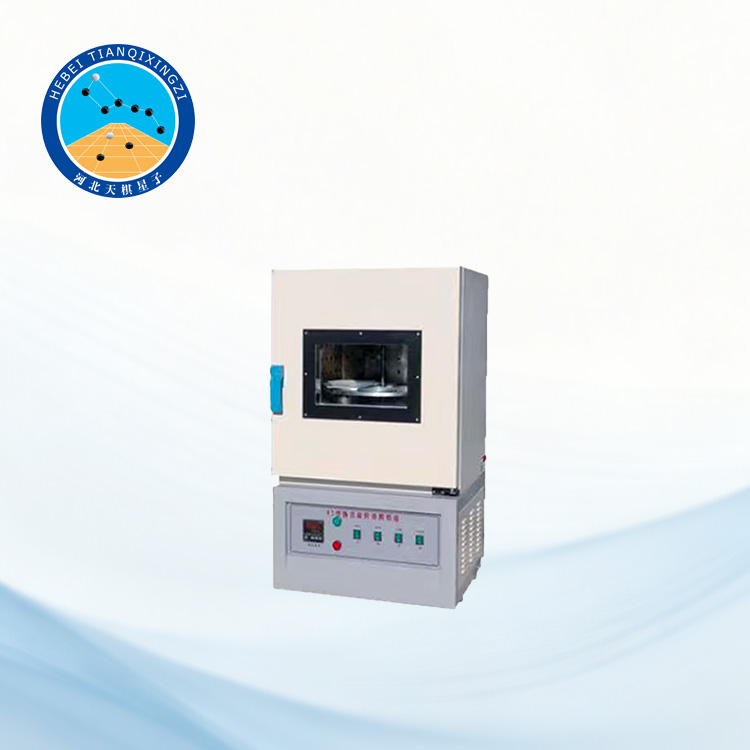

Asphalt Film Heating Oven

Model:TD609-1

I. Product Introduction

The Asphalt Thin Film Heating Tester, manufactured by Hebei Tianqixingzi Inspection Equipment Co., Ltd., is designed in accordance with the Chinese industry standard JTG 3410 — "Specifications for Testing of Asphalt and Asphalt Mixtures for Highway Engineering," and also references international standards including ASTM D1754, AASHTO T179, and EN 12607‑2.

II. Technical Parameters

1. Voltage: 220V±10%

2. Total Power: 5KW

Rotator Rotation Speed: Type 82: 5.5±1r/min; Type 85: 15±0.2r/min

4. Number of Sample Bottles: Type 82: 4; Type 85: 8

5. Operating Temperature: 163℃±0.5℃, Maximum 200℃

6. Cycle Time: 75min

7. Working Dimensions: 390×465×450mm

III. Instrument Configuration

1. Thin Film Heating Oven (TD609-1 / Former Model 82)

• Operating Temperature: Maximum 200℃, Temperature Control Accuracy ±1℃

• Equipped with a temperature regulator and a rotatable disc rack

• Rotary disc diameter 360–370 mm, with 4 shallow slots for placing sample dishes

• The turntable is suspended at its center via a vertical axis,and rotates horizontally via a transmission mechanism at a speed of 5.5 r/min ±1 r/min

• Double-layer door design, with the inner layer being glass,allowing direct temperature readings

• Automatic ventilation system: Air inlets and outlets are located at the top and bottom of the oven,ensuring hot air circulation and steam exhaust.

2. Sample dish (TD608-M type)

· Material: Stainless steel or aluminum

· Quantity: At least 4 pieces, must not deform during use.

3. Thermometer (TDBLW-200/1 type)

· Measuring range: 0–200℃

· Accuracy: ±0.5℃

· Can be replaced by a regular thermometer

4. Analytical Balance

· Sensitivity: Not greater than 1 mg

5. Other Accessories

• Dryer (240 mm in diameter)

• Auxiliary equipment such as timers
