Coefficient of friction tester is designed and manufactured to measure the static and kinetic coefficient of friction of plastic films, foils, paper, and other materials, which is widely applied to quality control, drug test, R & D, packaging, film, pharmaceutical, cosmetic and other industries.

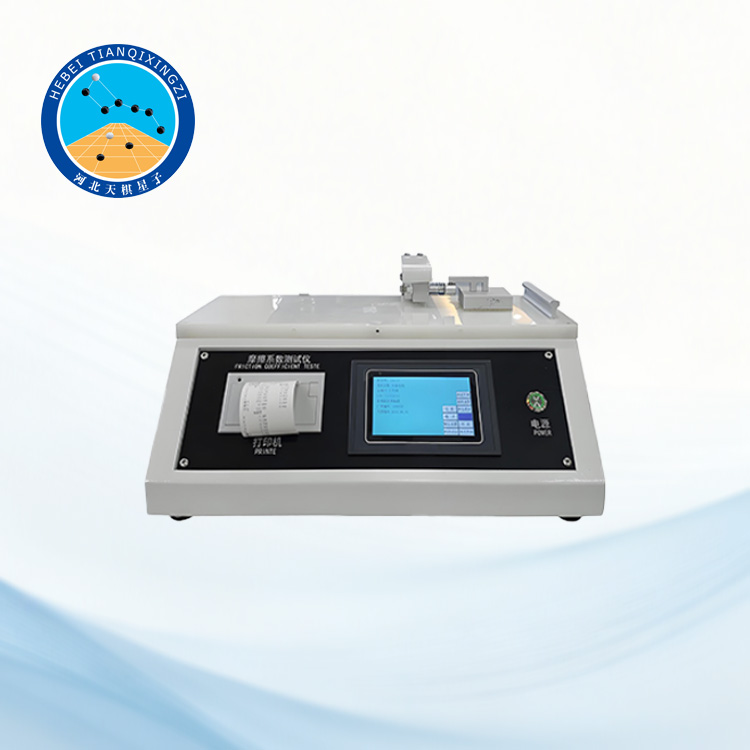

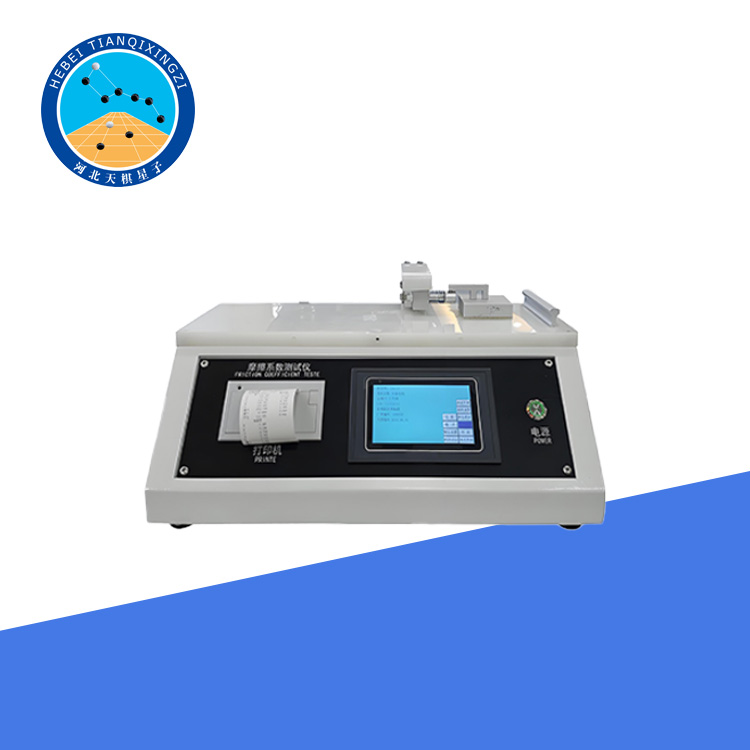

Friction coefficient tester

Model:LJLMC-1

I. Product Introduction

The coefficient of friction meter is a professional instrument suitable for measuring the static and dynamic coefficients of friction of materials such as plastic films and sheets, rubber and paper, cardboard, woven bags, fabric textures, metal composite belts for communication cables and optical fibers, conveyor belts, wood, coatings, brake pads, wipers, shoe materials, and tires during sliding. By measuring the slipperiness of materials, production quality process indicators can be controlled and adjusted to meet product usage requirements. It can also be used to determine the slipperiness of cosmetics, eye drops, and other daily chemical products.

II. Standards:

ASTM D1894

ISO 8295

ISO 15359

III. Scope and Application

1. Films: Suitable for testing the static and dynamic coefficients of friction of dry plastic films and sheets;

2. Paper: Suitable for testing the static and dynamic coefficients of friction of paper and paperboard;

3. Textiles, Non-woven Fabrics, Woven Bags: Suitable for testing the static and dynamic coefficients of friction of textiles, non-woven fabrics, and woven bags;

4. Rubber: Suitable for testing the static and dynamic coefficients of friction of dry rubber;

5. Aluminum Foil, Aluminum Foil Composite Film, Metal Products Suitable for testing the coefficient of friction and dynamic friction of aluminum foil, aluminum foil composite film, and metal products;

6. Printed Materials: Suitable for testing the coefficient of static friction and dynamic friction of printed materials.

IV. Technical Parameters

Weight of Weights (g): 200±2g

Slider Movement Speed: 100±10 (mm/min)

Test Force Accuracy: ±0.02 (N)

Voltage: 220V 50Hz

Specimen Size: Upper specimen: 63*63mm; Lower specimen: 80*200mm

External Dimensions: 300x400x180 (Width x Length x Height) (mm)

Weight: 10 (kg)
