The geotextile CBR puncture test instrument is a specialized testing device used to determine the resistance of geotextiles and related products to vertical loads during the puncture process.

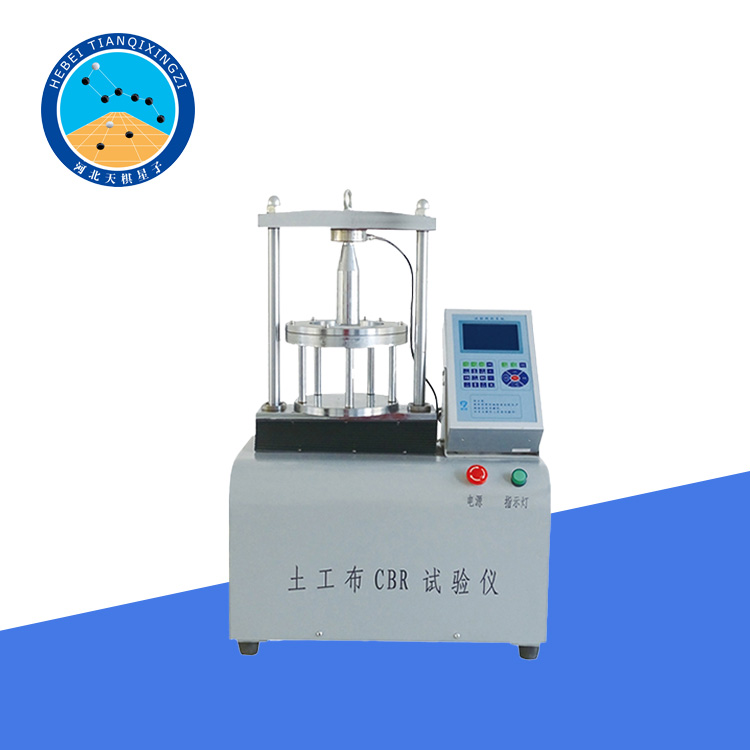

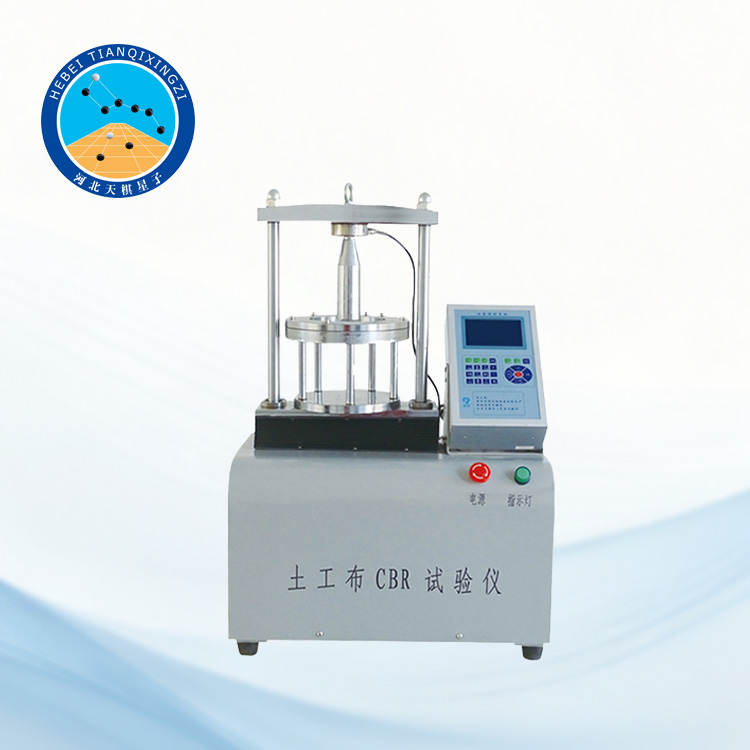

Geotextile CBR puncture test apparatus

Model:TGHCH-1

Product Introduction:

The geotextile CBR testing instrument is designed and manufactured in accordance with the requirements of the new"Test Procedures for Geosynthetic Materials in Highway Engineering JTG E50-2006 T1126-2006/T1127-2006"issued by the Ministry of Transport,and complies with international standards such as ASTM D6241-22a,ASTM D4833,and ISO 12236,making it well-suited for the international market.It is suitable for puncture and bursting strength testing of geotextile composite materials.

Product Features:

The instrument adopts a microcomputer control system, with real-time display of force value, displacement, and speed, automatic pressure application, and automatic timing.

It uses a spoke-type sensor, which is highly sensitive and provides accurate pressure measurement.

It uses a full-steel annular clamp, ensuring firm clamping and standard puncture head dimensions.

The instrument has an overload protection function, ensuring safe and stable testing.

Technical Parameters:

Maximum test force: 10kN

Maximum crossbeam travel: 130mm

Indication accuracy: ±1%

Resolution: 0.02%

Testing machine speed: 1mm/min-350mm/min

Power supply: 220V±10% 50Hz

Dimensions: 980*700*440mm

Weight: 130kg
