The sodium-based bentonite waterproof blanket hydrostatic pressure tester is a professional testing device used to determine the hydrostatic pressure resistance of bentonite waterproof blankets under specified water pressure, in order to evaluate their seepage prevention reliability and pressure resistance performance.

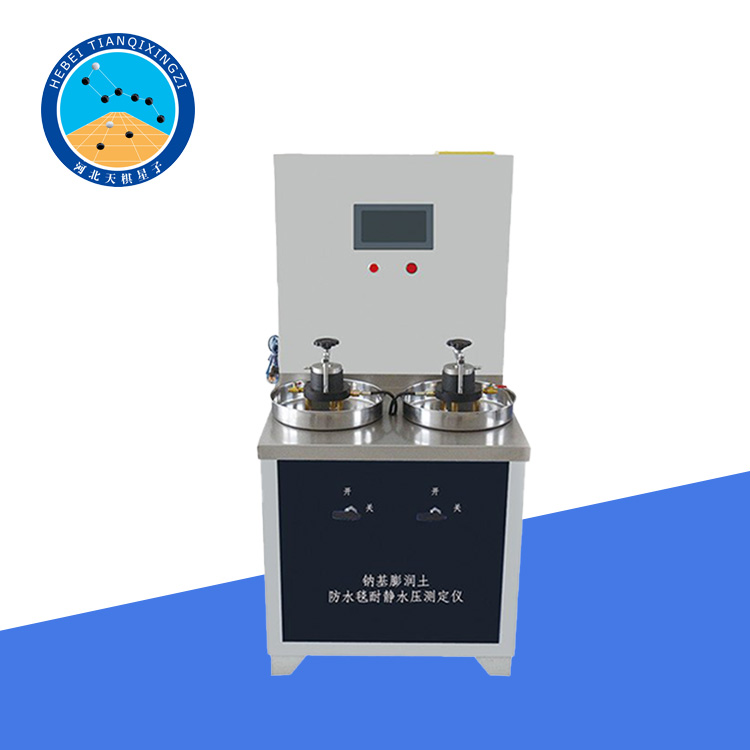

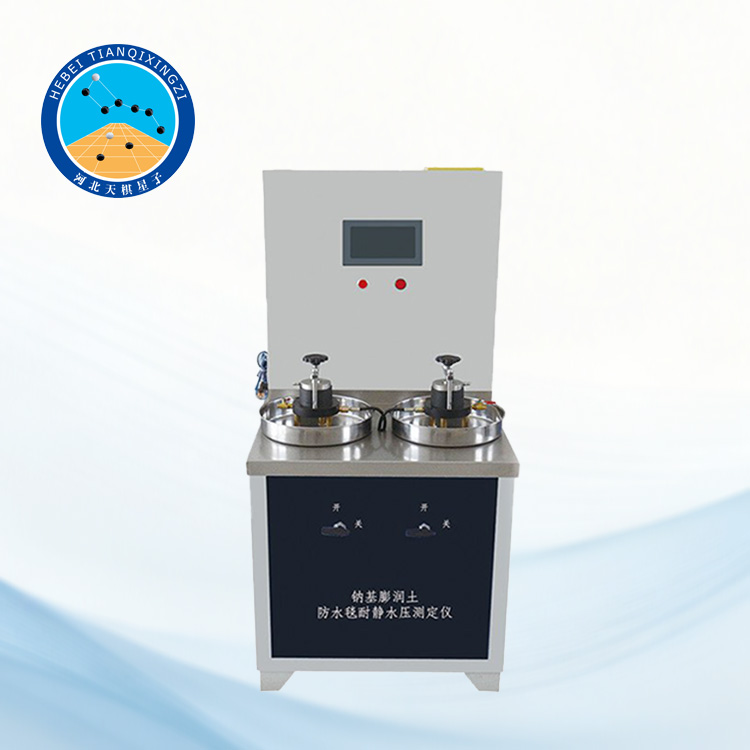

Sodium Bentonite Waterproof Blanket Hydrostatic Pressure Tester

Model:TGHCF-1

Product Introduction:

The hydrostatic pressure tester for sodium bentonite waterproof blankets is designed according to the hydrostatic pressure test method in JG/T 193-2006. It is used to evaluate the hydrostatic pressure resistance of various sodium bentonite waterproof blankets. At the same time, it refers to the internationally widely used ASTM D5887 seepage prevention performance test method to make its test results more internationally applicable and comparable.

Product Features:

8-inch LCD screen display, full touchscreen operation, high measurement accuracy.

Large stainless steel worktable, rust-proof and corrosion-resistant, facilitating test operation.

Built-in high-precision pressure sensor, high sensitivity, accurate readings.

Standard configuration includes two STS-55 permeameters, allowing simultaneous testing of two sets of samples.

Equipped with corresponding pressure control switches for individual pressure control of each set of samples.

Built-in high-efficiency water pump; automatic water supply is possible upon connection to a water source.

The instrument has a drain outlet for easy drainage after testing.

Technical Parameters:

Specimen Size: Φ55mm

Maximum Pressure: 3.0MPa

Power Supply: AC380V 50Hz

Dimensions: 830*830*1500mm

Weight: 75kg
