A standard soil sieve is a laboratory sieving tool used to classify soil samples by particle size in order to assess particle composition and size distribution.

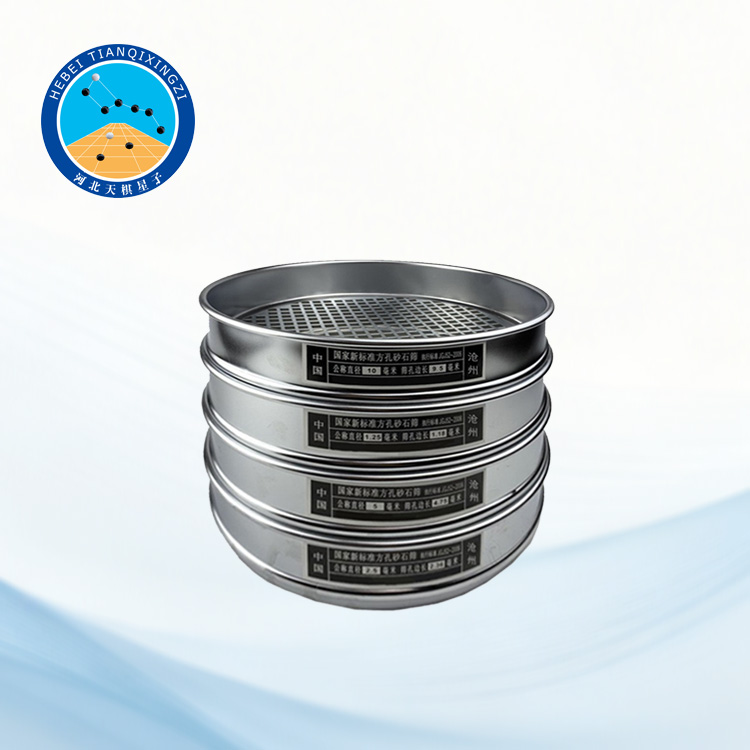

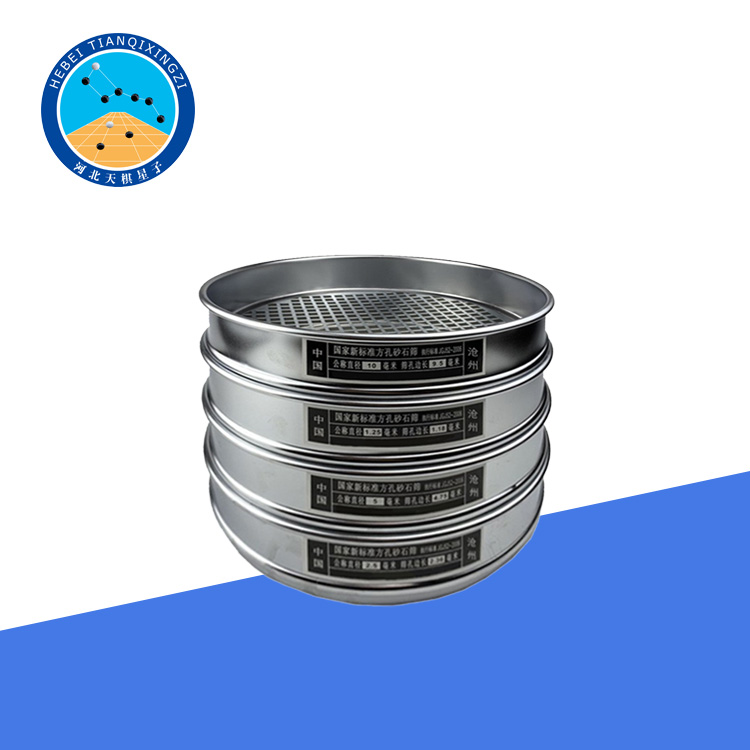

Standard Soil Sieve

Model:TGHCD-1

I. Product Description:

New standard sand sieve, gravel sieve, soil sieve, 300mm diameter. The new standard sand and gravel sieve is used in particle size analysis to determine the percentage of each particle group in dry soil by its total mass. The particle size, gradation, and particle group content of soil are important bases for soil engineering classification. Soil particle size is directly related to the soil's mineral composition, mechanical properties, and formation environment. Therefore, soil particle size is an important characteristic of soil. Particle size analysis is one of the basic geotechnical tests, and the accuracy of its results often affects the design scheme and even the stability of geotechnical structures.

Manufacturing and inspection conform to ISO 3310-1 / ISO 3310-2 and ISO 565 (nominal aperture values), and can be supplied according to ASTM E11 requirements. Common diameters: 200 mm / 300 mm / 450 mm; Material: SUS304 / SUS316 stainless steel.

Classification of Standard Sieve: New standard sand and gravel sieve, soil sieve, quasi-road base course aggregate sieve, quasi-asphalt concrete sieve, railway ballast lime sieve, cement standard water sieve, fly ash water sieve, cement negative pressure sieve, cement standard, fly ash standard sieve.

II. II. Technical Parameters:

New Standard Sand and Gravel Screen: (F3007 + 1 section)

Specifications: 9.50, 4.75, 2.36, 1.18, 0.6, 0.3, 0.15, 0.075mm

New Standard Stone Screen: (5300: 12 + 1 section)

Specifications: 2.36, 4.75, 9.50, 16.0, 19.0, 26.5, 31.5, 37.5, 53.0, 63.0, 75.0, 90.0m Road Base Aggregate Screen: (F200, 300, 13 + 1 section)

Specifications: 0.075 0.25, 0.5, 1, 2, 5, 10, 20, 30, 40, 50, 60, 80mm

Asphalt Pavement Aggregate Screen: ($200, 300, 15+1 section)

Specifications: 0.075, 0.15, 0.3, 0.6, 1.18, 2.36, 4.75, 9.5, 13.2, 16.0, 19.0, 26.5, 31.5, 37.5, 53mm

Lime Screen: (f2005-1 section)

Specifications: 0.125, 0.71, 0.9, 5, 20mm Standard Dry Cement: (∮200 (4+1 sections)

Specifications: 0.08, 0.068, 0.2, 0.9

Standard Cement Water Sieve: (5125 aperture 0.08)

New Standard Soil Sieve: (5200, 300, 10+1 sections)

Specifications: 0.075, 0.25, 0.5, 1, 2, 5, 10, 20, 40, 60mm

III. Features of New Standard Sand, Gravel, and Soil Sieves:

1. The new standard sand and gravel sieve achieves high precision and high mesh size while controlling a narrow particle size range.

2. The new standard sand and gravel sieve can be used in single-layer or multi-layer applications, with one intelligent ultrasonic generator using three transducers simultaneously.

3. The new standard sand and gravel sieve has a complete self-cleaning function: for mesh sizes greater than 500, there is no mesh clogging, and the screening efficiency will decrease without clogging.
