The geosynthetic hydrostatic pressure tester is an experimental device used to test the permeability and resistance to damage of geosynthetics under hydrostatic pressure.

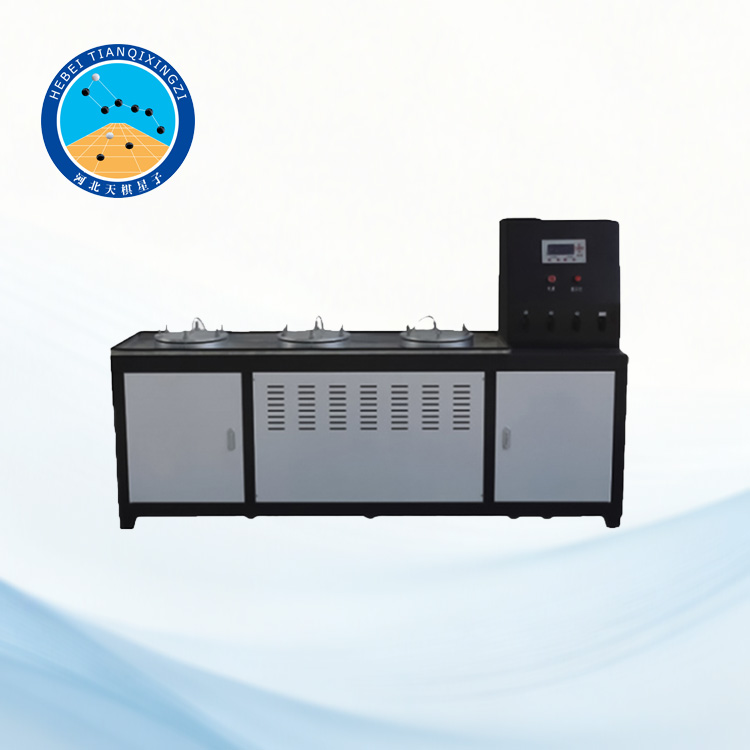

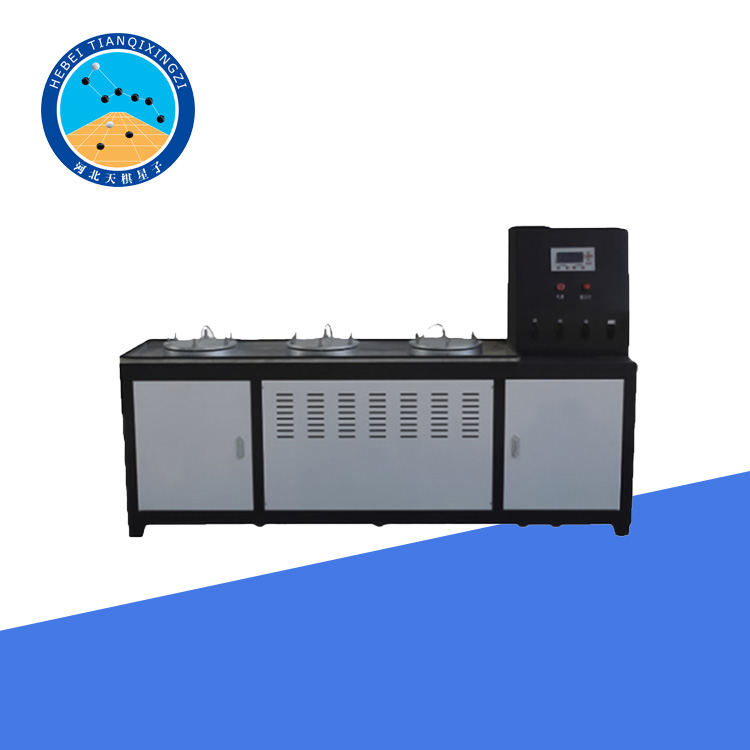

Geosynthetic Material Hydrostatic Pressure Tester (3 Standard Specimens, with Heating)

Model:TGHCC-2

I. Product Introduction

The geosynthetic material hydrostatic pressure tester is used to test the hydrostatic pressure resistance of nonwoven composite geotextiles (one-layer geotextile and one-layer membrane, two-layer geotextile and one-layer membrane) produced with nonwoven geotextiles or other materials as the base material and polyethylene, polyvinyl chloride, etc., as the membrane material, under specified water pressure difference conditions.

[Standards Met]: GB/T 19979, GB/T 17642, JTG E50 T1142, EN 13562:2000, ISO 811:2018,ISO 11058 / ASTM D4491

II. Technical Parameters

1. Measuring range: 0~2.500MPa

2. Resolution: 0.001MPa

3. Inner diameter of water collector: 200mm

4. Diameter of perforated plate holes: 3±0.05mm

5. Spacing of perforated plate holes: 6mm

6. Power supply voltage: AC380V 50Hz Three-phase four-wire

7. Dimensions: 800x800x1460mm

(Standard 3 specimens, with heating)
