The computer-controlled asphalt softening point tester is an intelligent testing device that accurately determines the softening point of asphalt by automatically heating, detecting, and recording the sinking temperature of a steel ball.

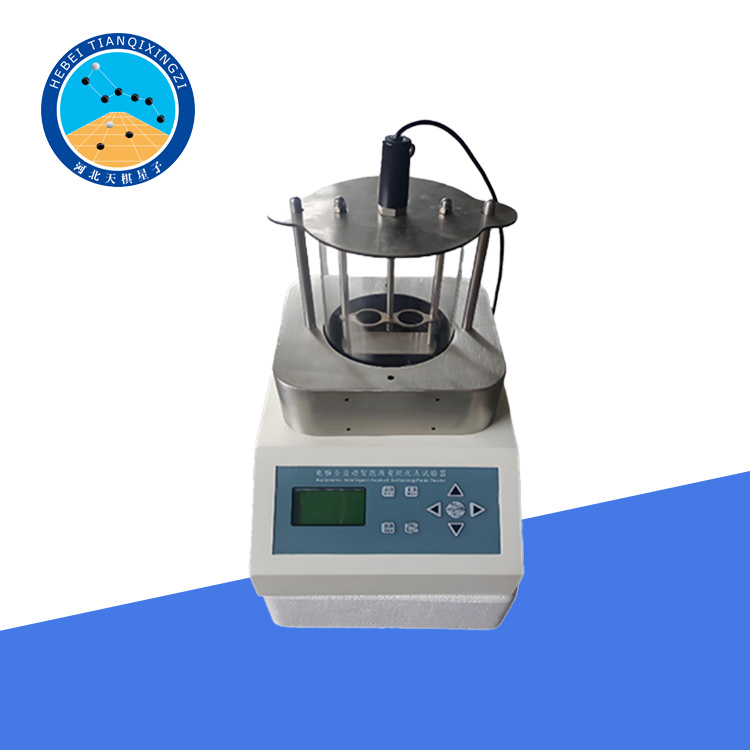

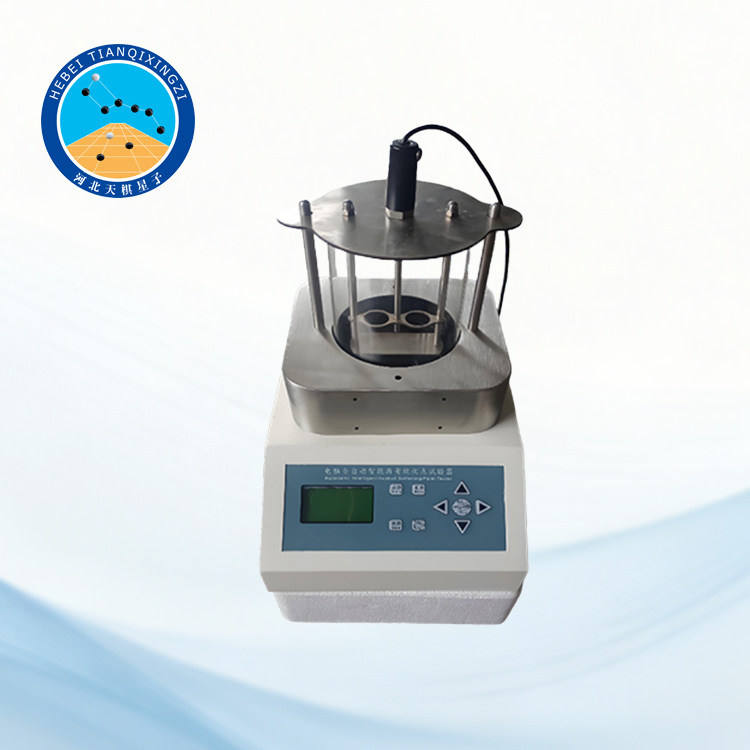

Computerized Asphalt Softening Point Tester

Model:LQ-FH002

I. Product Introduction

This instrument is designed and manufactured according to the requirements of the national standard GB/T4507 "Determination of Softening Point of Petroleum Asphalt" and the national transportation industry standard JTG 3410-2025 "Test Procedures for Asphalt and Asphalt Mixtures in Highway Engineering" T0606 "Asphalt Softening Point Test". It is suitable for determining the softening point of various types of asphalt, including road petroleum asphalt, polymer-modified asphalt, diluted asphalt, and emulsified asphalt residues. It is the preferred instrument for asphalt production enterprises, highway and bridge construction units, and related universities and research institutions.

This instrument simultaneously meets the following international standard requirements:

ASTM D36/D36M — Ring-Ball Method for Determining Softening Point of Bituminous Binders

AASHTO T53 — Test for Softening Point of Bituminous Binders

EN 1427 — Bitumen and bituminous binders — Determination of softening point (Ring and Ball)

ISO 4625 (Ring-and-Ball) — Determination of softening point of coatings and bituminous binders

IP 59 — Bitumen Softening Point (Ring and Ball)

This instrument adopts full computer control, electronic photoelectric measurement, LCD display, and automatic printing of test results by a micro-printer. It also features linear temperature heating, uniform bath stirring, simultaneous testing of two samples, and automatic detection of sample softening point. With a high degree of automation, fast and convenient testing, and reliable test results, it is an intelligent instrument for asphalt softening point testing.The instrument employs a highly automated control system, ensuring accurate and reliable measurement results. It fully meets the standardization, precision, and high stability requirements for softening point testing both domestically and internationally.

II. Technical Parameters

1. Power Supply Voltage: ~220V/50HZ;

2. Temperature Measurement Range: (a) For samples with a softening point below 80℃, using distilled water as the heating medium, +5℃～+80℃;

(b) For samples with a softening point above 80℃, using glycerin as the heating medium, +32℃～+180℃;

3. Temperature Resolution: 0.1℃;

4. Stirrer: Continuously adjustable stirring speed with 250 adjustable levels;

5. Heating Rate: Automatically adjusts to 5.0±0.5℃/min after three minutes;

6. Softening Point Result: LCD display;

7. Heating Power: 600W;

8. Beaker Volume: 1000mL;

9. Environmental Conditions: Ambient temperature less than 35℃, no air convection;

10. Relative Humidity: ≤85%;

11. Total Power Consumption: Not greater than 700W;
