This equipment is a specialized performance testing device used to determine the ability of impermeable materials such as geomembranes and composite geomembranes to resist water permeation under specific water pressure.

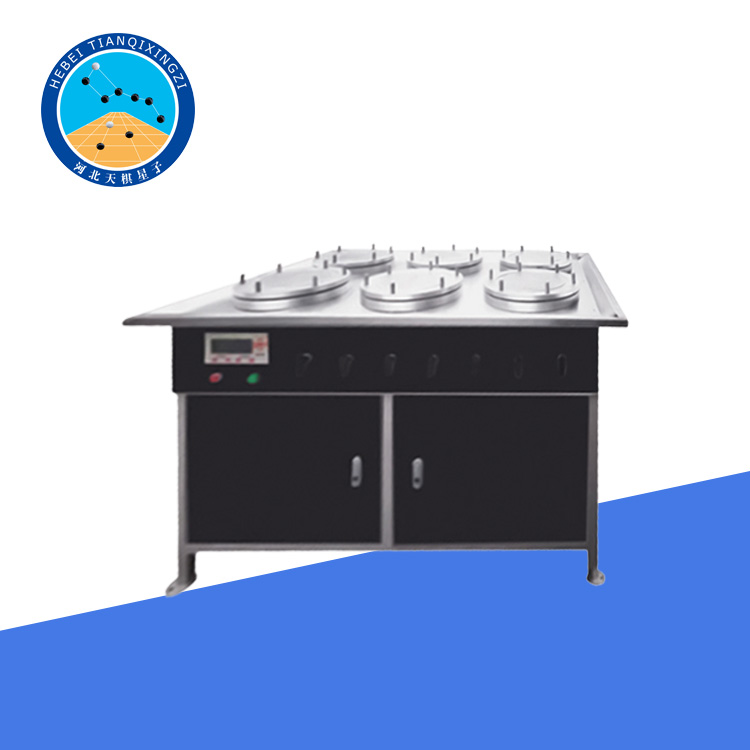

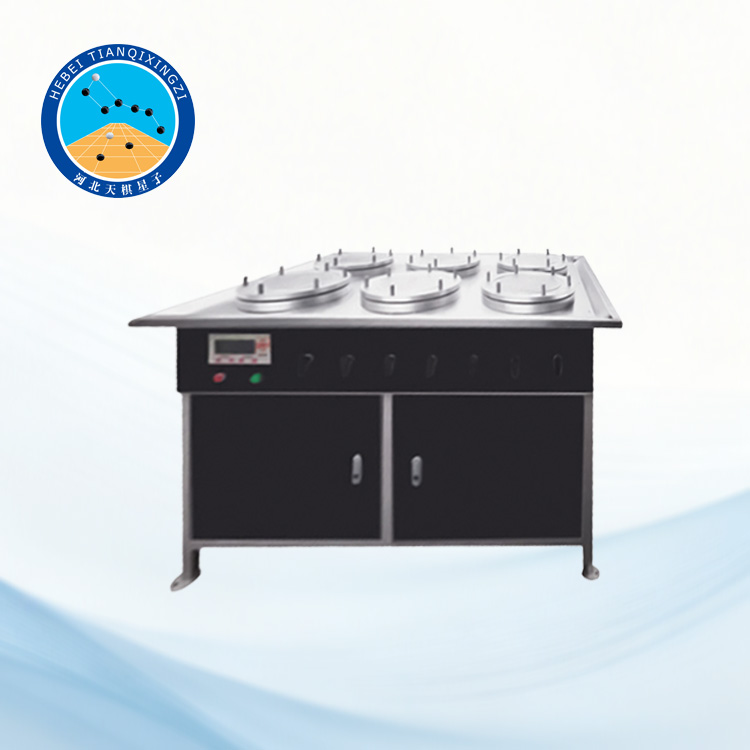

Geosynthetic Material Hydrostatic Pressure Tester (6 Standard Specimens, Constant Temperature)

Model:TGHCC-1

I. Product Introduction

The geosynthetic material hydrostatic pressure tester is used to test the hydrostatic pressure resistance of nonwoven composite geotextiles (one-layer geotextile and one-layer membrane, two-layer geotextile and one-layer membrane) produced with nonwoven geotextiles or other materials as the base material and polyethylene, polyvinyl chloride, etc., as the membrane material, under specified water pressure difference conditions.

[Standards Met]: GB/T 19979, GB/T 17642, JTG E50 T1142, EN 13562:2000, ISO 811:2018,ISO 11058 / ASTM D4491

II. Technical Parameters

1. Measuring Range: 0~2.500MPa

2. Resolution: 0.001MPa

3. Water Collector Inner Diameter: 200mm

4. Perforated Plate Hole Diameter: 3±0.05mm

5. Perforated Plate Hole Spacing: 6mm

6. Power Supply Voltage: AC380V 50Hz Three-phase Four-wire

7. Dimensions: 800x800x1460mm
