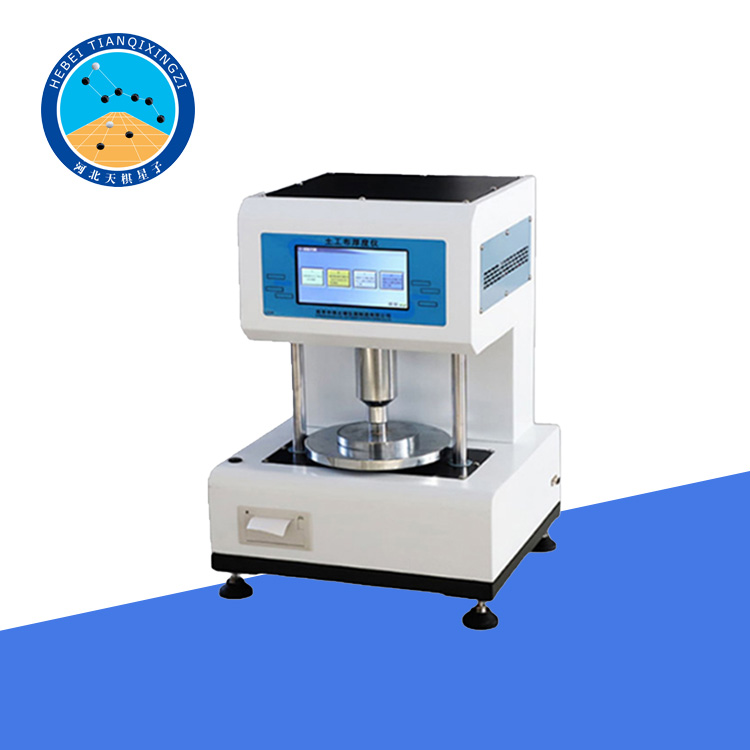

Digital Display Geosynthetic Thickness Gauge

A digital geosynthetic thickness gauge is a laboratory instrument used to accurately measure the thickness of geosynthetic materials under specific pressure.

Model:TGHCB-1

I. Product Introduction

This method specifies a test procedure for determining the thickness of geotextiles and related products under a certain pressure. This method is applicable to geotextiles and composite geotextiles. Applicable standards: JTG E50-2006 "Test Procedure for Geosynthetics in Highway Engineering"; GB 8170 Numerical rounding rules; designed to conform to ISO 9863-1 and ASTM D5199 thickness measurement methods.

II. Technical Parameters

1. Maximum Load: 5000N

2. Accuracy Class: Class 1

3. Thickness Measuring Range: 0~12mm

4. Reference Plate Diameter: mm

5. Pressure Foot Area: 100cm² and 25±0.2cm²

6. Force Measuring Accuracy: Within +1% of the indicated value

7. Minimum Thickness Graduation Value: 0.01mm

8. Testing Machine Resolution: 1/+300000 yards for maximum load, no internal or external range, and consistent resolution throughout the entire range

9. Displacement Measurement Accuracy: Within +0.5% of the indicated value

10. Test Platform Safety Device: Electronic limit protection

11. Test Platform Lifting Device: Fast/slow speed controllable and adjustable

12. Overload Protection: Automatic protection when exceeding the maximum load by 10%

13. Main Unit Dimensions: 560x380x750mm

14. Motor: 220V+10% 0.75kW

15. Main unit weight: 56Kg
