The Le Chatelier Water Bath Safety Cover is designed to enclose and protect a cement boiling box during cement soundness testing. Made of stainless steel and equipped with a high-temperature-resistant observation window and exhaust pipe, it helps improve operator safety, protect the equipment, and reduce the impact of steam and heat on laboratory conditions.

Le Chatelier Water Bath Safety Cover

Model: TDJC995-A

I. Product Overview

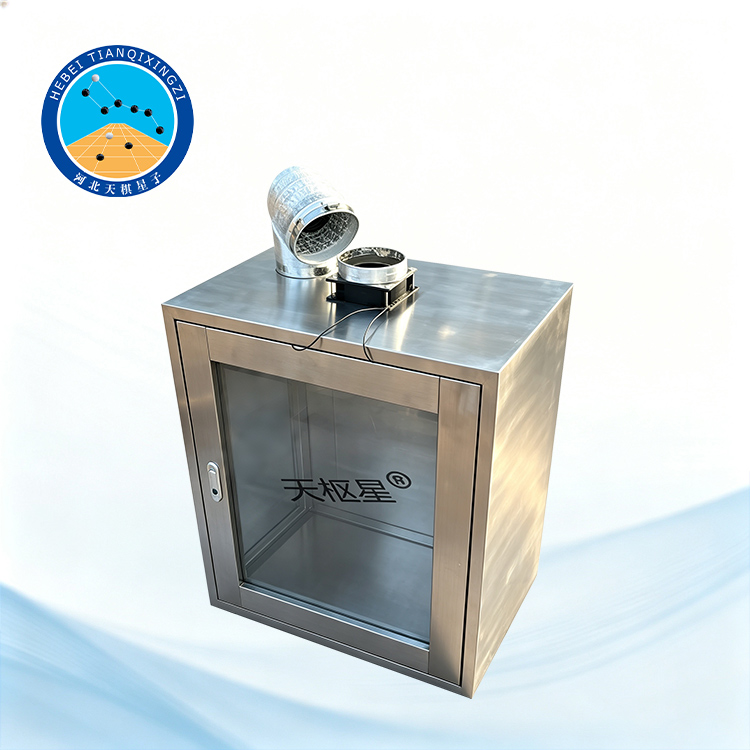

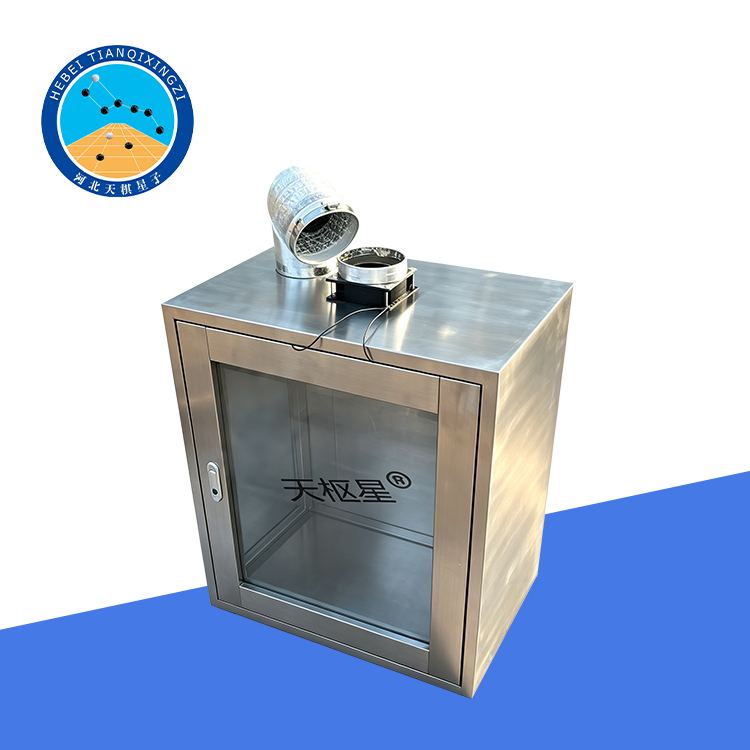

The entire enclosure is made of stainless steel and is equipped with a high-temperature-resistant organic glass observation window. The upper part of the safety cover is provided with an opening fitted with an exhaust pipe for smoke ventilation.

II. Technical Specifications

1. Internal Dimensions: 600 × 450 × 600 mm

2. External Dimensions: 670 × 510 × 710 mm

3. Cable Entry Hole: The enclosure is equipped with a cable entry hole.

III. Main Features

1. Enclosed Design: The boiling box is enclosed by a protective cover, with the exhaust pipe extending outdoors. This helps prevent steam and smoke from affecting the environmental conditions of the cement laboratory.

2. Enhanced Operator Safety: The protective cover helps protect operators from direct contact with the hot boiling box and reduces the risk of accidental injury.

3. Equipment Protection: The cover helps protect the boiling box from external impacts and damage, contributing to stable and reliable operation.

IV. Precautions

1. The power grounding wire of the instrument must be connected to an independent grounding point.

2. The plugs for the pressure and flow value sensors must be connected to the correct sockets. If a plug cannot be inserted, rotate it to the correct orientation and try again.

3. If there is significant power grid interference or unstable voltage, users are recommended to install an AC power conditioner. If a power conditioner is not available, an AC voltage stabilizer should be used.

4. The control cables for the loading section and the printer cable must not be subjected to tension or excessive force.

5. Do not share the same power outlet with high-power electrical appliances.

V. Applications

The Le Chatelier Water Bath Safety Cover is designed for use with cement boiling boxes during cement soundness testing. It is suitable for:

Cement manufacturing plants;

Construction material laboratories;

Cement quality control laboratories;

Testing and inspection institutions;

Universities and research laboratories;

Building material testing facilities.

It is particularly suitable for laboratories that perform routine cement soundness tests using the Le Chatelier method and require improved protection and ventilation during boiling operations.

VI. Compatible Equipment

The safety cover is designed to be used with a compatible cement boiling box / Le Chatelier water bath. It provides an enclosed operating environment while allowing observation of the boiling process through the high-temperature-resistant viewing window.

The exhaust pipe can be connected to an appropriate ventilation system or extended outdoors to help discharge steam and hot air generated during operation.
