The Electro-Hydraulic Servo Universal Testing Machine (Testing Center Model) is engineered for accurate evaluation of material mechanical properties under different loading conditions. It supports a wide range of tests, including tension, compression, bending, and shear, applicable to both metallic and non-metallic materials. With its precise force control system and reliable data measurement, the equipment ensures consistent testing results. It is well-suited for use in laboratories, inspection organizations, and research facilities focused on material analysis and quality assessment.

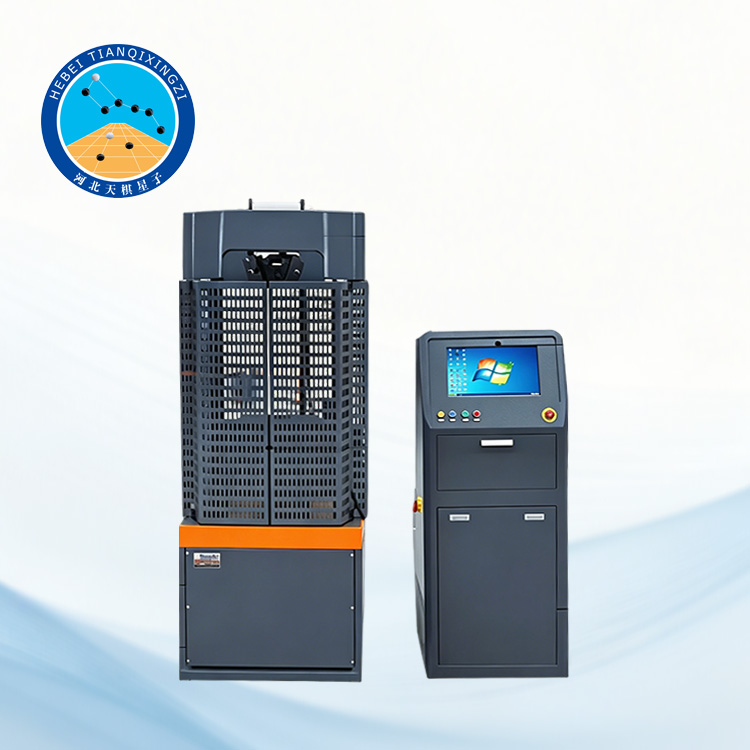

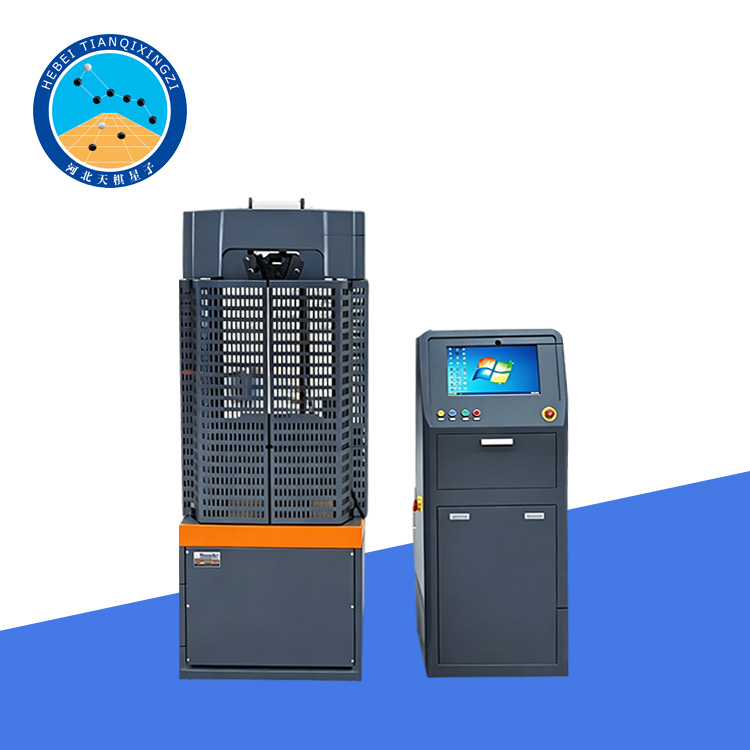

Electro-Hydraulic Servo Universal Testing Machine(Testing Center Model)

Model:TDWSJ-2000D

I. Product Overview

The Electro-Hydraulic Servo Universal Testing Machine (Testing Center Model) is designed for mechanical performance testing of metallic and non-metallic materials under tensile, compression, bending, and shear loads. It is widely used in material inspection laboratories, construction quality testing centers, universities, and research institutes for reliable material analysis and strength evaluation.

The system provides stable hydraulic loading, precise control performance, and accurate data acquisition, ensuring consistent and repeatable test results for engineering and scientific applications.

II. Applicable Standards

GB/T228 Metal Tensile Testing Method

GB/T7314 Metal Compression Testing Method

GB/T50081 Standard for Mechanical Properties of Ordinary Concrete

ISO and ASTM equivalent testing methods (optional compliance depending on configuration)

III. Available Models

WSJ-100D; WSJ-300D; WSJ-600D; WSJ-1000D; WSJ-2000D

IV. Technical Parameters

Maximum Test Force: 2000 kN

Accuracy Class: Class 1

Maximum Tensile Space (including piston stroke): 750 mm

Flat Specimen Thickness Range: 15–40 mm

Round Specimen Diameter Range: Φ20–60 mm

Maximum Distance Between Compression Platens: 550 mm

Bending Support Span Range: 50–300 mm

Piston Stroke: 200 mm

Oil Pump Motor Power: 1.5 kW

Crossbeam Lifting Motor Power: 0.55 kW

Force Measurement Range: 0–2000 kN

Total Weight: 4200 kg

V. Installation Requirements

To ensure stable operation and measurement accuracy, proper installation is required:

1. Foundation layout according to installation drawing

2. Anchor bolt fixation and first-stage concrete pouring

3. Machine leveling and system commissioning

4. Second-stage concrete reinforcement pouring for final stability

VI. Structural Features

Four-column high-rigidity frame structure

Dual lead screw design for stable loading

High-strength hydraulic loading system

Safety protection guard net for operator safety

Stable mechanical structure suitable for long-term operation

Precise alignment system for accurate test results

VII. Product Advantages

High accuracy and stable performance

Suitable for multi-material testing applications

Strong frame structure for heavy-duty testing

Easy operation with reliable hydraulic control system

Ideal for testing centers and quality inspection institutions

Long service life with low maintenance requirements
