The machine adopts a load cell measuring system and features a LCD display that provides real-time display of test force, loading speed, upper and lower yield points, and the force-time curve. The readings are intuitive and highly accurate. The test curve automatically scales according to changes in force and time.

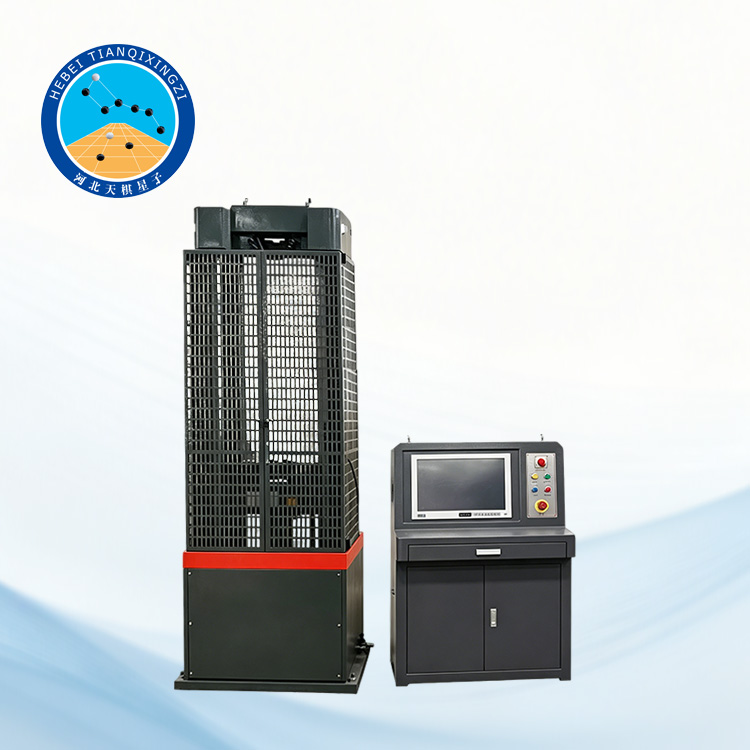

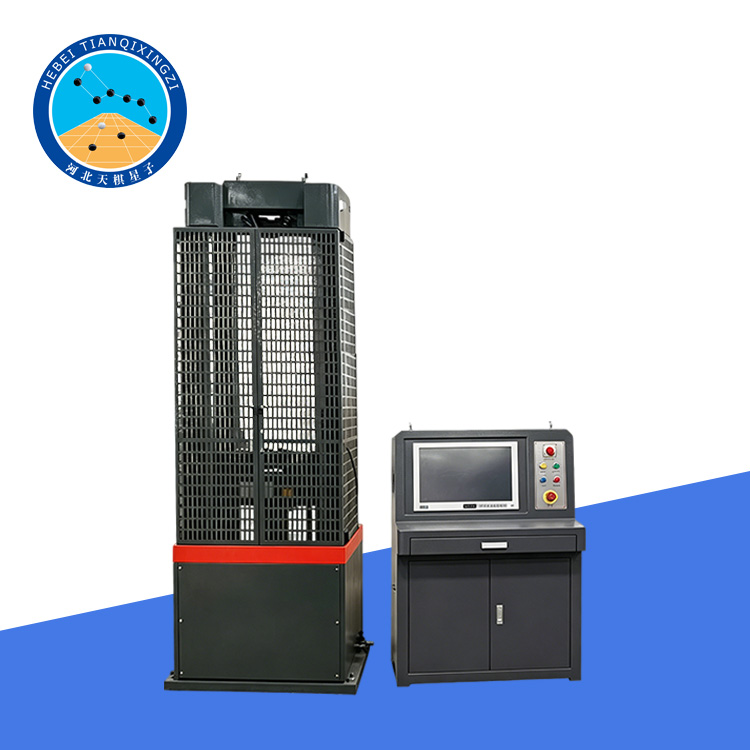

High Performance Steel Strand Universal Testing Machine

Model:TDGWEW-1000B

I. Application

This testing machine is designed for conducting tensile, compression, bending, and shear tests on various metallic and non-metallic materials.The machine can be equipped with an extensometer and displacement measurement system for advanced testing applications. It is capable of storing data for up to 1,000 specimens, with convenient retrieval by specimen number.

Applicable or reference standards: ISO 15630-3, ISO 6892-1, ISO 7500-1, ASTM A416, ASTM E4.

II. Additional features include

Loading speed tracking

Overload protection

Power failure protection

Real-time clock

Built-in micro printer

Communication interface for connection with a computer

Network connectivity for remote transmission and output of test data and curves through a local area network (LAN)

This machine is specially designed for prestressed steel strand tensile testing and can also be used for rebar tensile testing, although steel strand testing is its primary application.Non-standard customized testing machines are available upon request.

Note: The equipment must be properly grounded to prevent electric shock.

III. Technical Parameters

Maximum Test Force: 1000 (KN)

Measuring Range: 0-200 (KN), 0-500 (KN), 0-1000 (KN)

Relative Error of Force Measurement Indication (%): ±1

Maximum distance between upper and lower pressure plates (mm): 1000

Maximum distance between tensile jaws (mm): 1000

Distance between support rollers in bending test (mm): 50-700

Steel strand diameter (mm): 8-32

Round specimen clamping diameter (mm): 20-60

Flat specimen clamping thickness (mm): 0-40

Flat specimen clamping width (mm): ≤100

Shear specimen diameter (mm): 0-30

Effective distance between supports (mm): 650

Piston stroke (mm): 250

Motor power (Kw): 2.15

Main unit dimensions (mm): 1000*700*2930

Oil source control cabinet dimensions (mm): 1080*650*1200

Weight (approx.) (kg): 3500

IV. Product Advantages Summary

Professional steel strand testing equipment;

Designed for a large test force of 1000kN;

Multi-functional testing including tensile, compression, bending, and shear;

Real-time LCD display of the test process;

Comprehensive data storage and printing functions;

Supports network connectivity and remote data output;

Compliant with international standards such as ISO, ASTM, and GB;

Customized solutions available to meet specific customer needs.
