This equipment is used to determine the impermeability of concrete under specified water pressure conditions. By automatically pressurizing and sealing the load, it determines the concrete's ability to resist water penetration. It is an important test device for evaluating the compactness, durability, and engineering applicability of concrete.

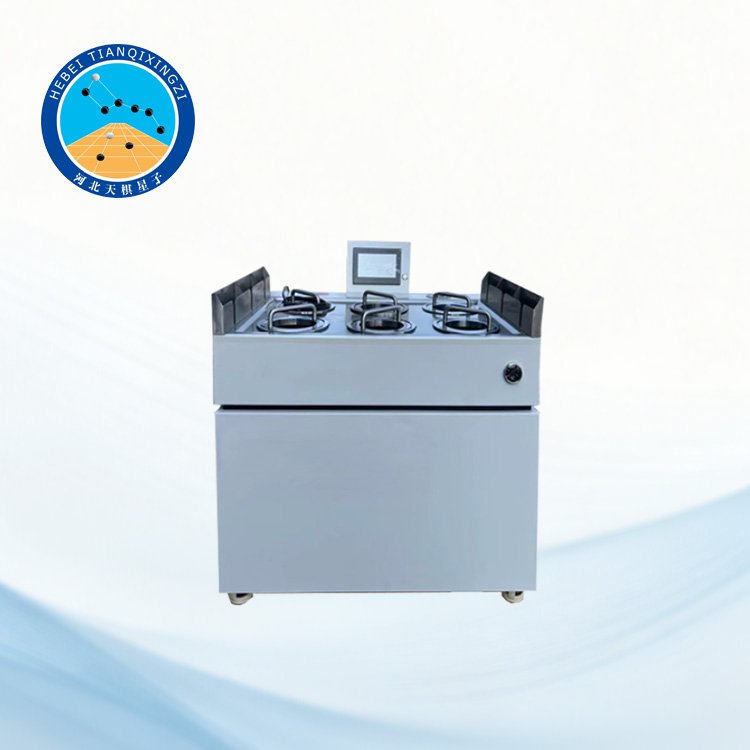

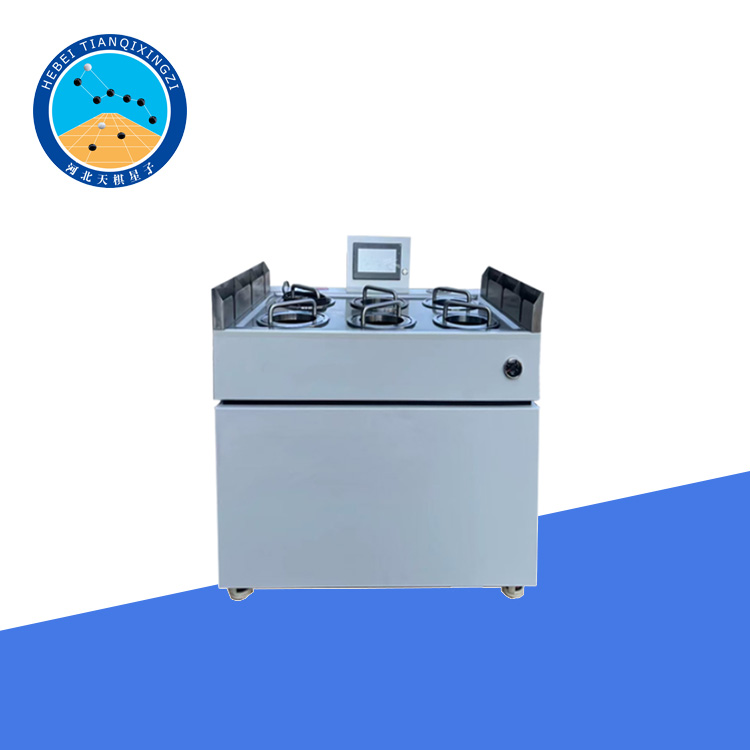

Automatic Sealed Concrete Water Permeability Tester

I.Product Introduction

Application Areas:Testing the impermeability of concrete structures such as buildings,bridges,and tunnels.

II.Standards

JG/T249-2009*Concrete Permeability Tester*

JTS/T236-2019*Technical Specification for Testing and Inspection of Concrete in Water Transport Engineering*

GB/T50082-2009*Standard for Test Methods of Long-Term Performance and Durability of Ordinary Concrete*

Reference Standard:EN 12390-8*Testing hardened concrete–Depth of penetration of water under pressure*

ISO 1920-5:2018*Testing of concrete Part 5:Density and water penetration depth*

III.Product Features

1.7-inch touchscreen display with a simple interface and clear data;

2.One-button operation,fully automated testing;

3.Automatic sealing,no need to apply any sealing material;

4.Automatic pressurization and automatic pressure maintenance;

5.Automatic shutdown and automatic pressure release after the test;

6.No manual operation required throughout the entire process;continuous 24-hour monitoring.

IV.Technical Parameters

1.Maximum Test Pressure:1.2 MPa;Test Pressure Resolution:0.01 MPa

2.Relative Error of Test Pressure Indication:±0.015 MPa

3.Number of Specimens Tested at One Time:6

4.Maximum sealing pressure:2.0 MPa,sealing pressure resolution:0.01 MPa

5.Specimen sealing method:pneumatic seal

6.Mold cavity dimensions:Diameter 188 mm,Height 150 mm

7.Specimen sealing sleeve material:Special wear-resistant and high-pressure resistant imported material

8.Water leakage detection method:Sensor detection on the top surface of the specimen,timely and accurate

9.Power supply:220V-50HZ,Total power:1000W

10.External Dimensions:Length 1100 x Width 850 x Height 1000 mm;Weight:Approx.150 kg
