The Rutting Test Ruler is a portable measuring tool designed for on-site evaluation of asphalt pavement cross-sections and rut depth. It is used to accurately measure surface deformation caused by traffic loads, supporting pavement quality inspection, construction control, and maintenance assessment in accordance with relevant highway testing standards.

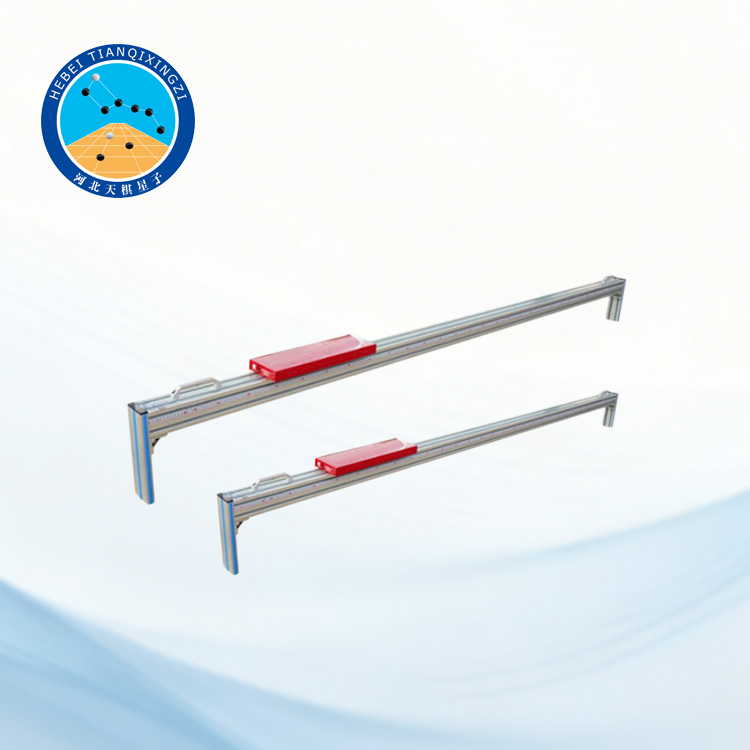

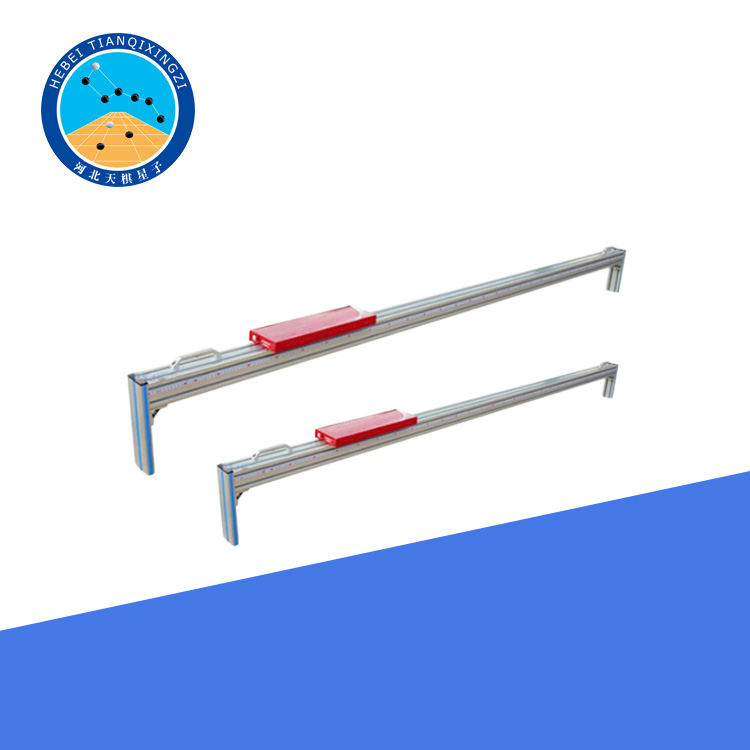

Asphalt Pavement Cross-Section Ruler

Model:LQBHD-II

I.Product Introduction

The road cross-section ruler is used to measure rutting on asphalt pavements,for assessing pavement condition and calculating maintenance workload.

The Pavement Cross Section/Rutting Test Ruler is designed in accordance with JTG E60-2008 and T0973-2008,the Chinese technical specifications for on-site testing of highway subgrade and pavement.Its design and application also reference international standards,including ASTM E1703/E1703M for rut-depth measurement using a straightedge and ASTM D8360‑22 for assessing asphalt mixture rutting performance.

Main functions:

1.Rut depth measurement:Detects the depth of ruts formed on the road surface due to vehicle traffic.

2.Cross slope measurement:Measure whether the cross slope of the road surface meets the design specifications(e.g.,a drainage slope of 2%~3%).

3.Smoothness inspection:Assist in evaluating the longitudinal and transverse smoothness of the road surface.

II.Technical Parameters

1.End face ruler length:Adjustable from 1 to 3.8m

2.Depth measurement accuracy:1mm

3.Weight:20kg

III.Product Types

Mechanical Cross-Section Ruler:

Material:High-strength aluminum alloy/stainless steel,lightweight and corrosion-resistant.

Structure:Foldable or telescopic design for easy carrying(common length 1.5m~3m).

Scale accuracy:millimeter-level scale or digital display scale,some models include a level bubble level.

Electronic Laser Cross-Section Ruler:

Integrates a laser rangefinder sensor to automatically calculate slope and rut depth;data can be exported to a computer for analysis.

IV.Product Features

High Precision:Meets highway inspection standards,with an error range within±0.5mm.

Portability:Foldable or segmented design,suitable for field operations.

Durability:Rust-proof and wear-resistant,suitable for high-temperature asphalt environments.

Multifunctionality:Some models are compatible with inclinometer and level functions.
