A mortar mixer consists of a mortar mixing pot,mixing blades,and related components.The mixing pot should be fixed on a base so that it does not shake or rotate significantly during mixing;the mixing blades are fan-shaped,rotating clockwise while simultaneously revolving counterclockwise during operation,and feature two speed settings:high and low.

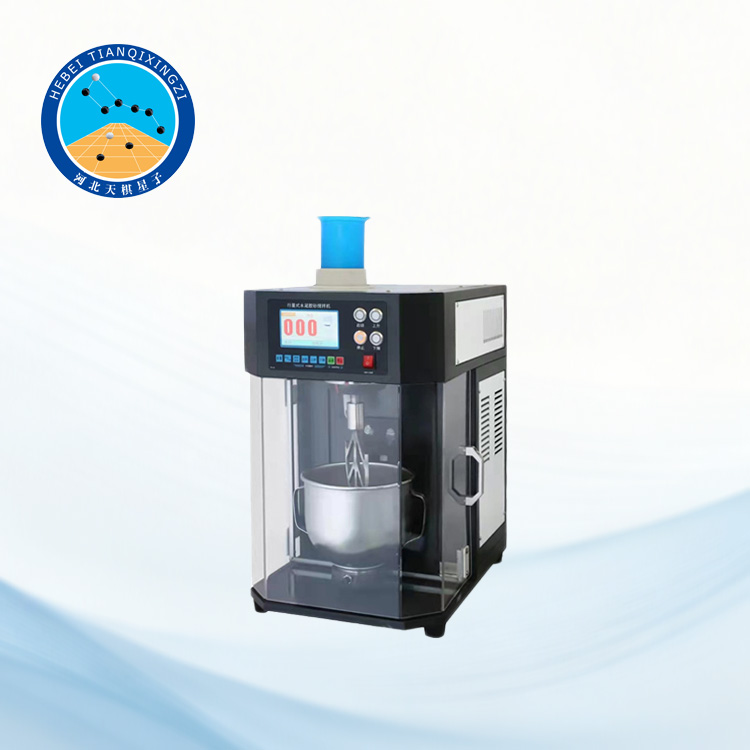

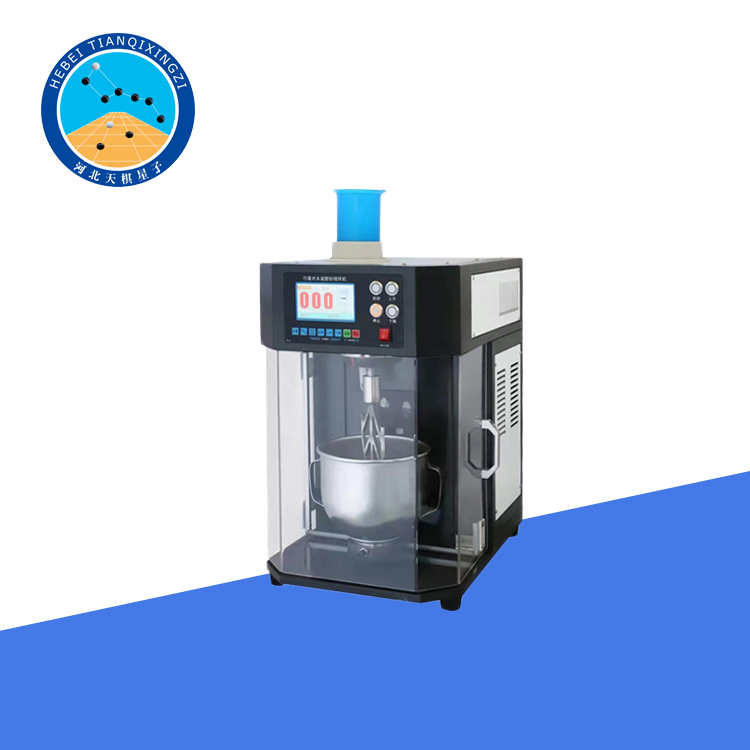

Fully automatic planetary cement mortar mixer

Model:QTB503-Z

I.Product Introduction

The mortar mixer is a mortar preparation equipment specified in GB/T 17671.It should be manufactured using verified drawings and in accordance with ISO 679–Cement Mortar Strength Test Methods and ASTM C305–Standard Practice for Mechanical Mixing of Hydraulic Cement Pastes and Mortars of Plastic Consistency.This ensures that the prepared cement mortar samples are uniform,meet international standards,and can be used for accurate strength testing.

II.Technical Parameters

1.Total width of the mixing blades is approximately 135mm;Effective mixing length is approximately 130mm;

Blade width is(8±1)mm;Blade thickness is(6±2)mm.

The blade thickness of the mixer blades used in the mixer is(5±1)mm.

2.The working clearance between the stirring blades and the bottom and wall of the pot is(3±1)mm.

3.The electrical control of the mortar mixer is stable and reliable,and the insulation resistance of the whole machine is not less than 2MΩ.

4.Speedmeasuring instrument:the graduation value is not greater than 0.1r/min.

Stopwatch:Scale division no greater than 0.1s.

Balance:Scale division no greater than 0.1g.

Depth gauge,inside micrometer,thickness gauge,vernier caliper:Scale division no greater than 0.02mm.

5.Megohmmeter:Rated DC voltage 500V,accuracy not less than 2.5 class

6.Stirring time detection:Detected with a stopwatch(6.2.2),with results accurate to 0.1s.
