This equipment can also be used to evaluate the abrasion resistance, uniformity, and particle size distribution of fiber materials, providing reliable data support for fiber modification research, product performance optimization, and industrial production quality control.

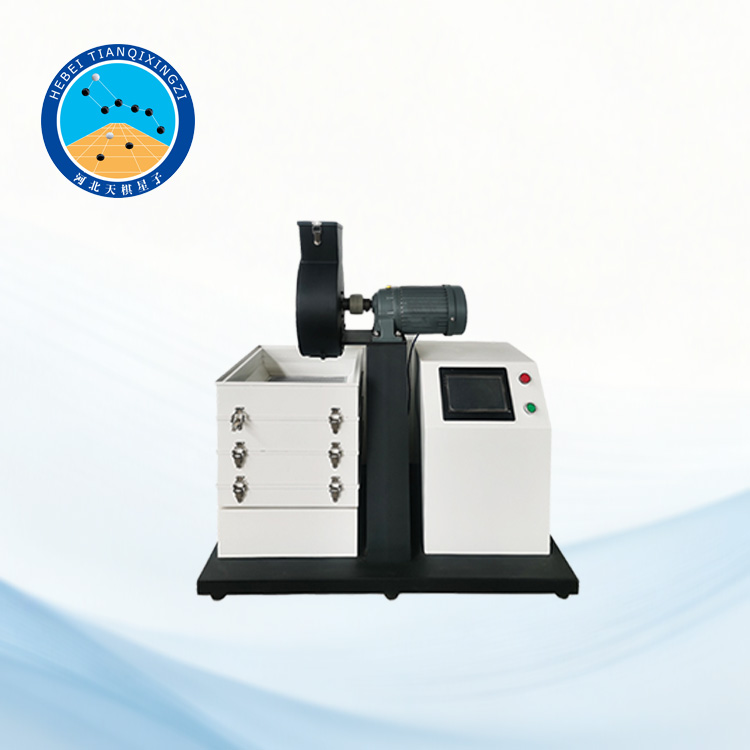

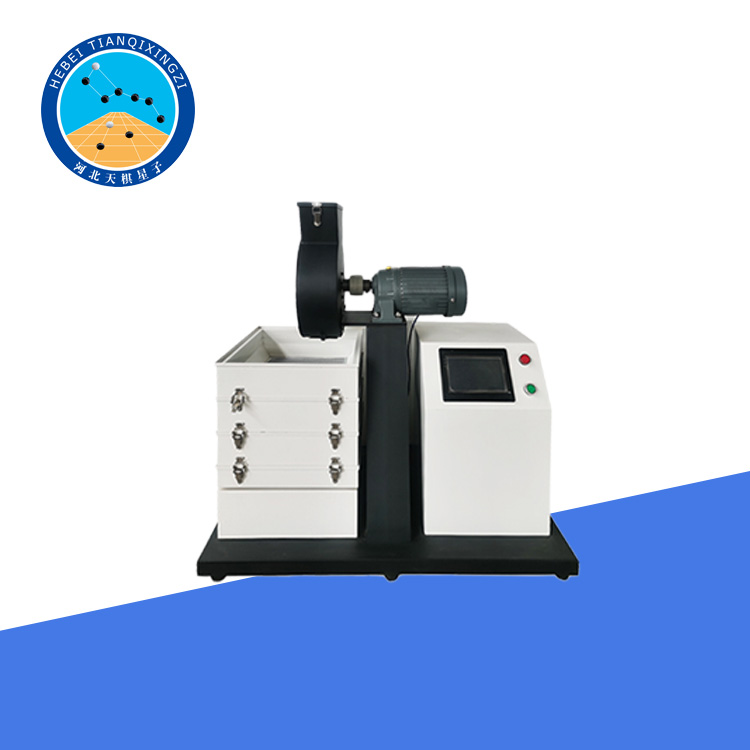

Fiber abrasion tester

Model:LQAJ533-MH

I.Product Introduction

The fiber abrasion tester grinds granular wood fibers in a grinding system for a specified time.Then,a vibrating sieve system is activated to sieve the ground fibers,thereby completing the quality analysis of the ground and sieved granular wood fibers.

II.Reference Standards

JT/T533-2020

ASTM D4966

ISO 12947(series)

III.Technical Parameters

Grinding wheel diameter:280mm

Grinding tooth width:15mm

Grinding wheel thickness:4mm

Sieve aperture specifications:2.8mm and 4mm

Grinding tooth angle:30°

Grinding tooth length:50mm

Grinding wheel speed:500 RPM

Vibration frequency:50 Hz

Distance from grinding chamber sidewall:48 mm

Vibration amplitude:2mm

Distance from grinding chamber diameter:10mm

Power supply:380V 50Hz
