The Tag Open Cup (TOC) flash point tester is primarily used to determine the flash point and fire point of asphalt and asphalt binders, and is an important piece of equipment in the safety performance testing of asphalt.

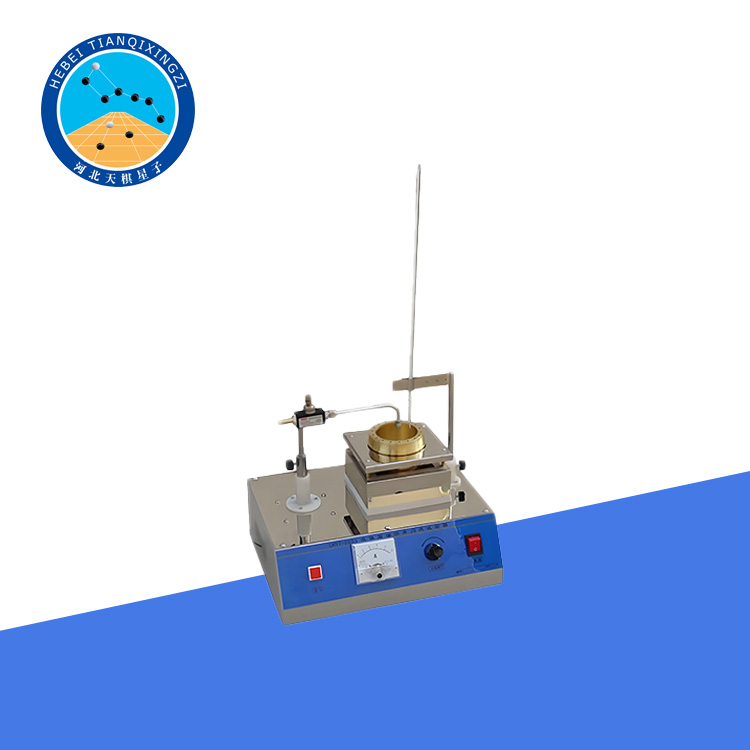

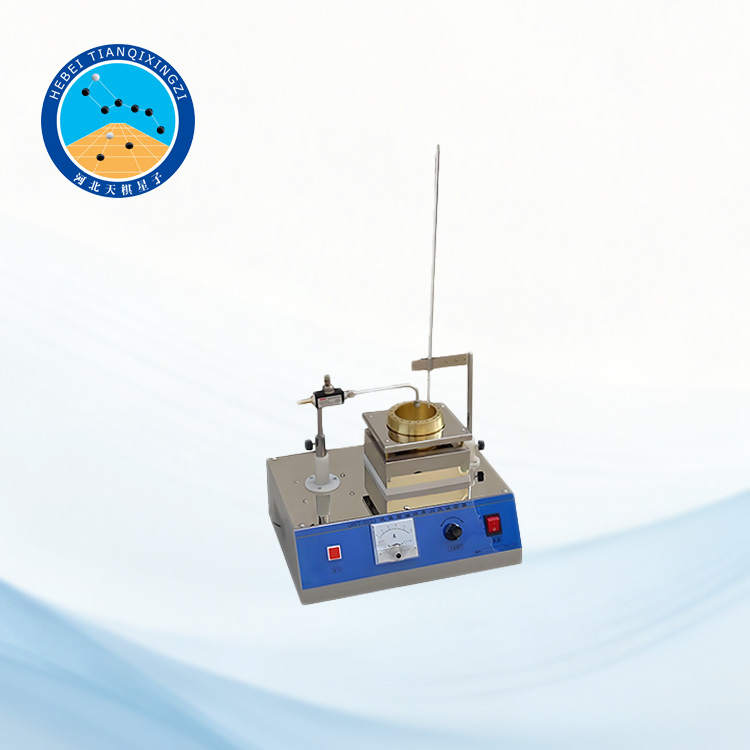

Tag Open Cup Flash Point Tester

Model:LQJHP-1

I.Product Introduction:

The liquid petroleum Tag open-cup asphalt flash point tester is designed and manufactured in accordance with the requirements specified in T0633-1993 "Flash Point Test of Liquid Petroleum (Tag Open-Cup Method)" of the People's Republic of China industry standard JTGE20-2011 "Test Procedures for Asphalt and Asphalt Mixtures in Highway Engineering," and complies with ASTM D1310-14(2021) Standard Test Method for Flash Point and Fire Point of Liquids by Tag Open-Cup Apparatus and ASTM D3143/D3143M-19(2025) Standard Test Method for Flash Point of Cutback Asphalt with Tag Open-Cup Apparatus. It is suitable for determining the flash point of liquid petroleum asphalt below 93℃.

II.Technical Parameters:

1.Power Supply:AC220V±10%,50Hz.

2.Sample Cup:Typically a metal crucible,47mm deep,with an upper opening diameter of 64mm and a lower opening diameter of 38mm.There is a marking line on the inner wall 3.2mm from the upper edge.

3.Insulated liquid bath cup:Made of 0.3 high-quality carbon structural steel,with an upper inner diameter ofΦ100 mm±5 mm,a height of(50±5)mm,and a bottom inner diameter ofΦ56 mm±2 mm.

4.Igniter:It consists of an air inlet pipe,an airflow regulating valve and a flame comparator ball.The nozzle diameter is 0.7mm to 0.8mm and can be adjusted to produce a spherical flame with a diameter of 4mm.

5.Heating rate:1℃–10℃/min,heating power is continuously adjustable.

6.Thermometer:The measuring range is generally 0℃to 100℃,with a minimum division value 1°C.

7.Ambient temperature:≤35℃.

8.Relative humidity:≤85%.

9.Gauge:Thickness 3.2mm,with two protrusions of 3.2±0.25mm each on the bottom.There are two holes located 3.2mm from the bottom,with diameters ofФ4.0mm andФ0.8mm respectively.
