The Automatic Laboratory Asphalt Mixer is a laboratory device used to uniformly mix aggregates and asphalt under controlled temperature and time conditions, producing high-quality asphalt mixture specimens and ensuring accurate and reproducible test results.

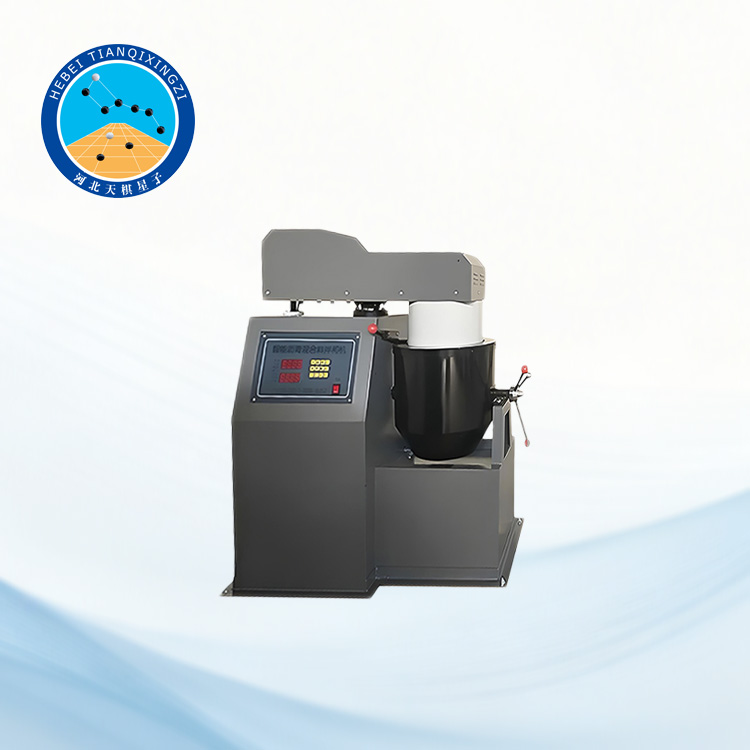

Automatic Laboratory Asphalt Mixture Mixer

Model:LQJHM-20A

I.Product Application

The automatic asphalt mixing machine is a specialized piece of equipment used in asphalt mixture testing laboratories for mixing and preparing asphalt mixture samples.This equipment is suitable for asphalt mixing,automatic temperature control,high precision temperature control,automatic control of the mixer head rise and fall,the whole machine electrostatic spraying,novel and beautiful appearance.With one-key control,the instrument can be controlled fully automatically from material discharge to the completion of the test.

II.Standards

EN 12697‑35:2025-Bituminous mixtures-Test methods-Part 35:Laboratory mixing

JTG E20"Test Procedures for Asphalt and Asphalt Mixtures in Highway Engineering"

III.Product Features

This machine features automatic temperature control,timing,automatic stirring,and lifting.It can mix materials of various particle sizes without jamming or crushing,easy to operate,simple to master,saves time and effort,safe and reliable.

IV.Technical Parameters

1.Maximum capacity of the mixing pot:10L and 20L(two options)

2.Temperature control range:0-250℃(can be set arbitrarily)

3.Power supply:AC220V-10A

4.Motor power:550W×2

5.Heating power:2kW

6.Mixer self-rotation speed:80r/min,revolution speed:45r/min
