The TDRH-V type emulsified asphalt testing machine is independently developed and manufactured by Cangzhou Taiding Hengye Testing Instruments Co., Ltd. As a professional testing instrument manufacturer, the company's product system covers asphalt testing equipment, concrete and cement testing instruments, geotechnical testing devices, intelligent curing systems (boxes/chambers), waterproof material testing instruments, and a series of building testing equipment.

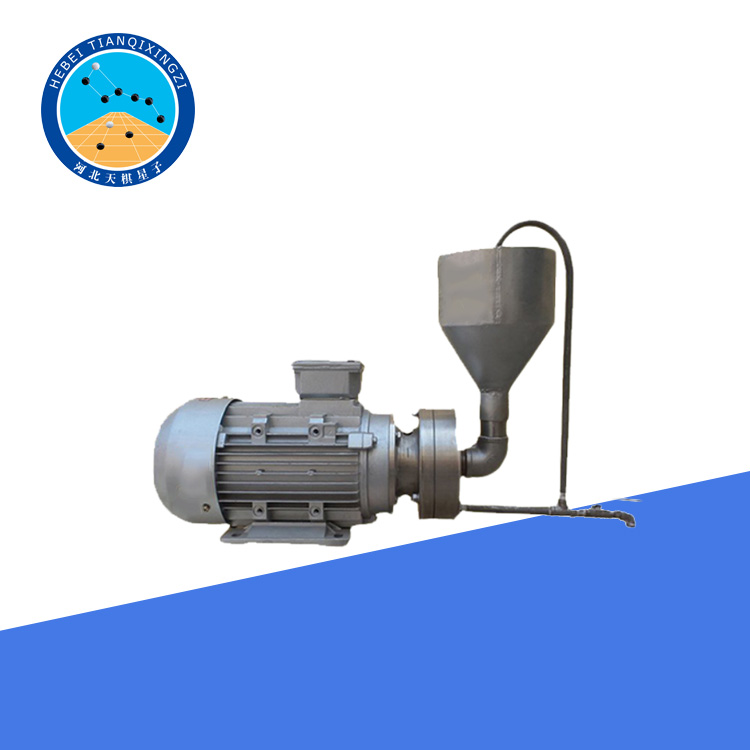

Emulsified Asphalt Laboratory Colloid Mill

Model:TDRH-V

I.Product Introduction

The Portable Emulsified Asphalt Colloid Mill features a****stator-rotor structure that integrates shearing and grinding in a single unit.After processing,emulsified asphalt particles can reach a size of 0.1μm,making it suitable for both conventional and modified emulsified asphalt.The machine body is made of high-strength stainless steel,providing excellent acid resistance and corrosion protection.

The design and application of this equipment refer to ASTM D244/D244M–Standard Test Methods and Practices for Emulsified Asphalts,making it ideal for laboratory preparation,quality control,and performance evaluation of emulsified asphalt.

II.Applications

1.Emulsified asphalt testing before micro-surfacing and slurry seal paving in the highway industry;

2.Testing of water-based waterproof coating formulations in the waterproofing industry;

3.Other emulsification tests conducted in the laboratory.

III.Features

1.Stainless steel internal gear stator and rotor structure,integrating shearing and grinding.The minimum particle size of the emulsified asphalt product is 0.1μm.

2.It can produce various types of emulsified asphalt and SBS modified asphalt emulsion.The machine body is made of high-strength stainless steel precision casting,which is corrosion-resistant,acid-resistant,small and lightweight,and easy to carry.

Advantages:Easy to carry and use.

IV.Technical Parameters

1.Motor Power:3kW;

2.Weight:25kg;

3.Maximum Emulsification Capacity:1000g.
