This instrument is widely used in road engineering to help determine the water damage resistance of asphalt mixtures and ensure that paved roads can maintain good performance in humid environments.

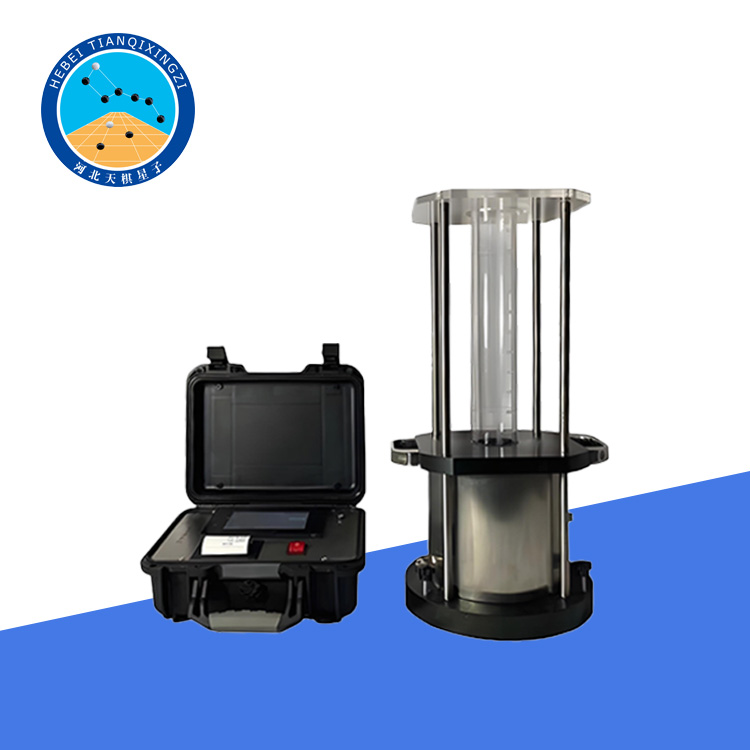

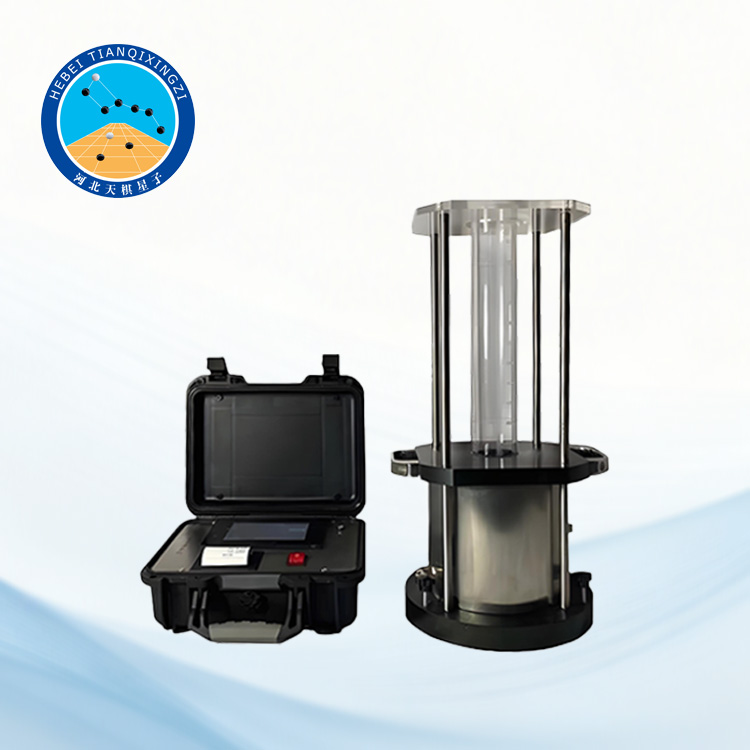

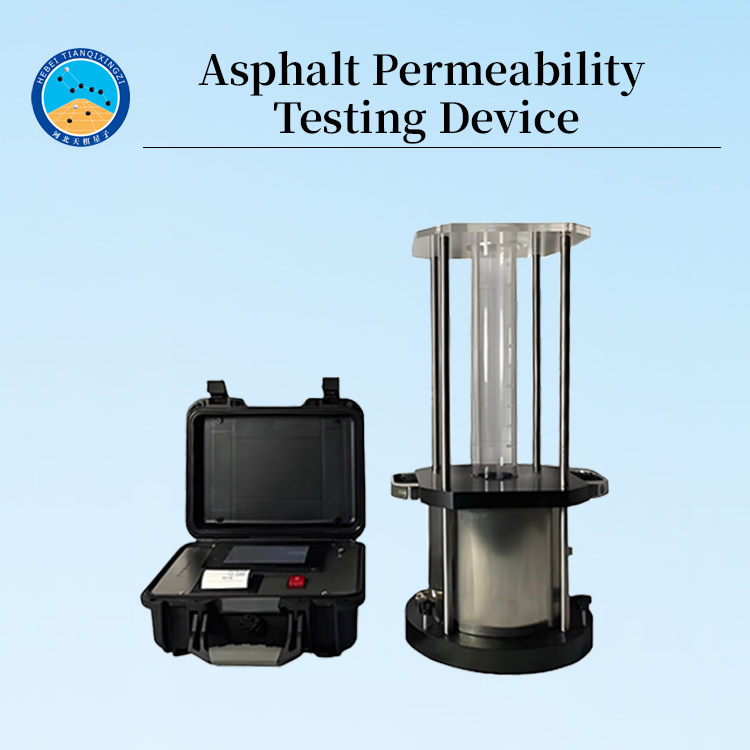

Road Permeability Tester

Model:LQJHBA1-1

I.Product Introduction

This instrument is designed according to the relevant requirements of the"Test Procedures for Asphalt and Asphalt Mixtures in Highway Engineering"(JTG 3410-2025)T0730-2025,specifically for asphalt mixture permeability testing.It is suitable for determining the permeability coefficient of asphalt mixture specimens to verify the mix design of asphalt mixtures.

II.Product Features

1.Automatic measurement and precision testing to evaluate the permeability and drainage performance of drainage asphalt pavements.

2.Meticulous processing ensures accurate permeability area,resulting in highly accurate measurement results.

III.Technical Parameters

1.Graduated Cylinder Parameters:The upper part is a transparent acrylic graduated cylinder with a volume of 600mL.It has graduations with coarse markings at 100mL and 500mL.A 10mm height corresponds to 20mL.

2.Base parameters:The base is made of aluminum or stainless steel.The inner diameter of the bottom opening is 150~151mm and the outer diameter is 300mm.There is a water outlet in the middle of the top with a diameter of 25mm±2mm.

3.Other Parameters:The permeameter is semi-automatic,featuring an internal piston with a rubber stopper at the bottom.Its outer diameter is slightly larger than the outlet orifice diameter,and also equipped with a liquid level sensor,which is connected to an external display.During the test,the display can show the liquid level and permeability coefficient in real time.
