The fan coil unit thermal performance testing equipment is a physical performance testing instrument used in energy science and technology,and civil engineering fields.

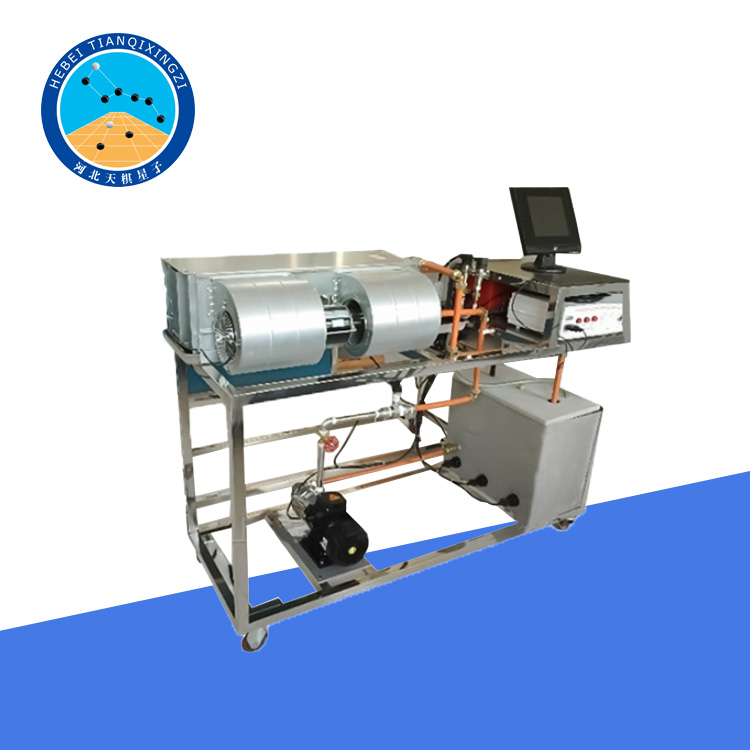

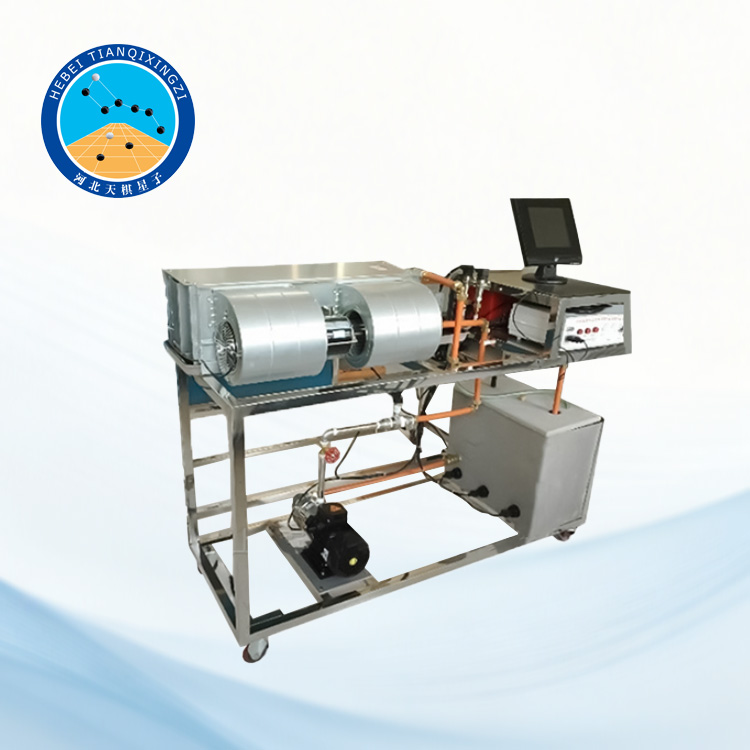

Fan Coil Unit Thermal Performance Tester

Model:TGSYP-1

I.Product Introduction

This equipment is suitable for units with an air supply volume below 2500 m³/h and an outlet static pressure less than 100 Pa.The fan coil unit thermal performance tester is mainly used to test key performance parameters of fan coil units,such as cooling capacity,heating capacity,air volume,outlet static pressure,noise,and power,to ensure compliance with relevant national standards and improve the energy efficiency of air conditioning systems.

Main test items:

Air volume test(measuring the air volume and input power of the fan coil unit)

Cooling and heating capacity test(using the air enthalpy difference method or water-side flow meter method)

Water resistance test(testing water flow resistance)

Condensation test(for type testing)

Condensate treatment test(testing drainage performance)

Noise and power test(optional)

II.Applicable Standards

GB/T 19232-2003 Fan Coil Units

JG/T 21-1999 Performance Test Methods for Air Coolers and Air Heaters

GB 50411-2007 Code for Acceptance of Construction Quality of Building Energy Conservation Projects

AHRI 440(I-P)/AHRI 441(SI)—Performance Rating of Fan-coil Units

BS EN 1397:Heat exchangers—Hydronic room fan coil units—Test procedures for establishing the performance

III.Equipment Features

High-precision measurement:Employs intelligent temperature control and digital filtering technology to ensure data accuracy.

High degree of automation:Computer automatically collects data and generates reports,reducing manual intervention.

Compliant with national standards:Strictly adheres to standards such as GB/T 19232.

Modular design:Some equipment can be expanded to include other testing functions,such as withstand voltage testing and insulation resistance testing.

IV.Technical Parameters

1.Fan Coil Unit:1 set

Rated Cooling Capacity:3800W

Rated Heating Capacity:6300W

Air Circulation:680m³/h

Power Supply:220V 50Hz

Input Power:55W

2.Heater:1000W,3 sets

3.Heated water tank:2mm thick stainless steel

4.Hot water pump:Variable frequency 220V 50Hz,maximum flow rate 4.2L/h,head 15 meters

5.Flow sensor:Working pressure:6.3MPa,flow range:0.1-0.6m³/h

6.Pressure sensor:2 units

7.Temperature sensor:18B20,4 sets

8.Embedded integrated touchscreen,MCGS embedded configuration software,with powerful image display and data processing functions.(Real-time display of measurement parameters)

9.Laboratory Table:Portable stainless steel laboratory table,dimensions:1600×600×800cm

10.Material:Stainless steel,30×30mm,1.5mm thick

11.Overall Dimensions:1600×600×1300cm
