This eguipment primarily used for soil consolidation and compression tests,detecting the relationship between soil pressure and deformation,and calculating unit sedimentation,compression index,rebound index,and consolidation coefficient.

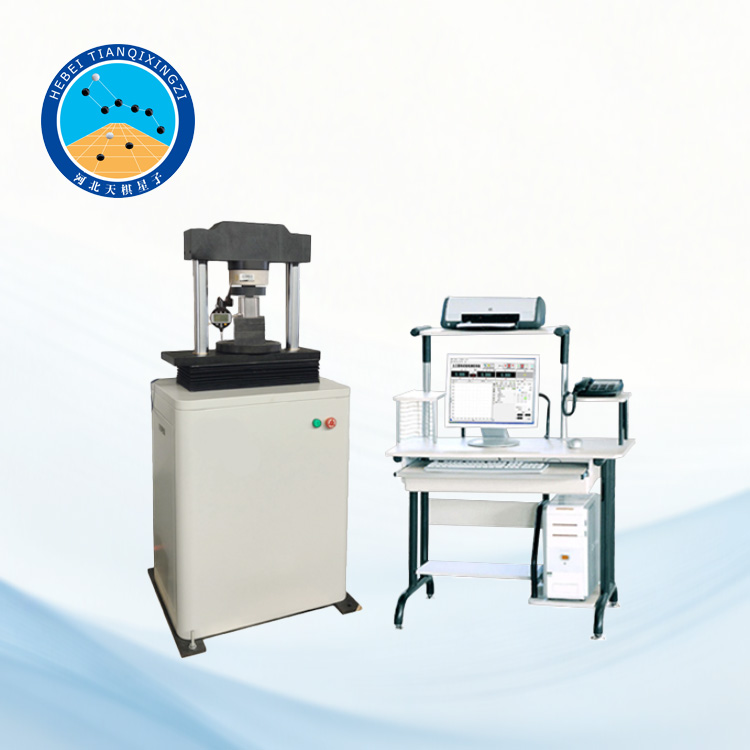

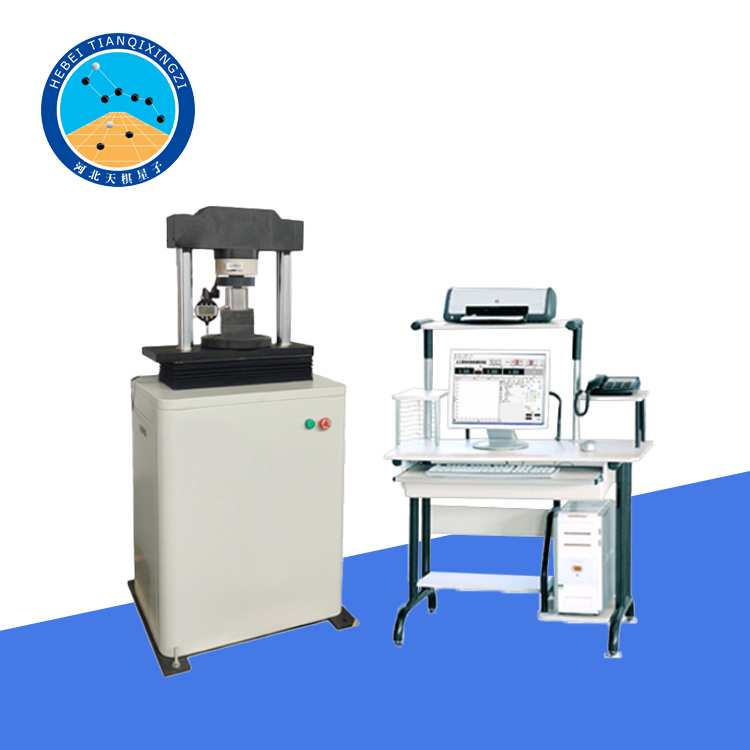

Computer controlled automated consolidation test equipment

Model:TGSYO-1

I.Product Introduction

The Geotechnical Consolidation Testing Machine is a multi-functional,fully automatic soil consolidation testing system,benefiting from new low-maintenance,high-efficiency,and environmentally friendly electronic servo control technology.Our noiseless,compact,and high-performance servo system runs on our professional software and meets the consolidation test requirements of GB/T50123-2019"Standard for Geotechnical Testing Methods"And refer to ASTM D2435/D2435M-25Standard Test Methods for One-Dimensional Consolidation Properties of Soils Using Incremental Loading and ISO 17892-5:2017 Geotechnical investigation and testing—Laboratory testing of soil Part 5:Incremental loading oedometer test standard.It is primarily used for soil consolidation and compression tests,detecting the relationship between soil pressure and deformation,and calculating unit sedimentation,compression index,rebound index,and consolidation coefficient.It can also perform uniaxial compression deformation tests on cement,concrete,and rock,and is applicable to engineering units in coal mines,geology,hydraulic engineering,transportation,and construction.

The main unit adopts a high-strength frame structure,and the overall structure is compact and the layout is reasonable.The control unit uses an AC servo speed control system to control a high-precision,high-frequency response AC servo motor,which drives a precision low-noise reducer and a precision ball screw pair for testing.This allows for a wide range of test speed adjustments,ensuring a smooth and efficient testing process.Test data can be accessed at will,enabling reanalysis of data and curves,local magnification,and re-editing of data,specimens,environmental conditions,and test parameters.Complete test reports and curves can be printed.

II.Technical Parameters

1.Main Unit:Model:TGSYO-1

2.Measurement Relative Error:±0.5%

3.Test Force Measurement:

A.Test Force Measurement Range:4-200 kN;

B.Test Force Indicated Value Accuracy:≤±0.5%of displayed value;

C.Test Force Measurement Resolution:0.005%FS.

4.Displacement Measurement:

A.Photoelectric encoder measures stroke;

B.Relative error of displacement indication:±0.25%;

C.Displacement measurement resolution:0.005%FS;

D.Displacement value display:Direct reading displayed on computer screen.

5.Deformation Measurement:

A.Deformation is measured using a digital dial indicator.

B.Relative error of deformation reading:±0.25%;

C.Displacement measurement resolution:0.005%FS;

D.Deformation display:Direct reading displayed on a computer screen.

6.SpeedControl:

A.Load Control Loading Speed:2.4kN/S±0.2kN/S,arbitrarily set

B.Load Constant Rate Control Range:0.05-8.0kN/S;Constant Rate Control Accuracy:±5%;

C.Test SpeedControl Range:0.05-50mm/min.

7.Pressure plate dimensions:Upper pressure plateφ150mm&Lower pressure plateφ220mm;

8.Settlement rate determination is achieved through graded stable loading:6s-120h(arbitrary setting);

9.Lead screw stroke:100mm;

10.Compression test space(height):0-200mm.

11.Column spacing:290mm

12.Power supply:AC220V±10%50Hz;Power:1.1KW

13.Overall dimensions:Approx.630×400×1400mm

14.Weight:Approx.350kg

15.Pressure plate spacing adjustment:Electric adjustment+auxiliary pads;

16.Overall stiffness of the test frame:not less than 300 kN/mm;

17.Control system:capable of automatically controlling loading speed and/or displacement speed via a servo mechanism;

A.Win7 operating platform;

While automatically controlling the test process,the test data of the testing machine is displayed on the screen;

C.Features screen display functions for test force,peak value,specimen deformation,displacement,and test curve;

18.Applicable Standards and Data Processing:

A.Users can customize data processing software to meet national standards or other standard requirements;

B.The test process can be simulated and reproduced,and test data can be reanalyzed.

19.Safety Protection Devices:

A.Overload protection activates when the test force exceeds 2%-5%of the maximum test force for each range,unloading the system;

B.Travel protection activates when the lead screw reaches its upper limit position,stopping the motor;

C.Overcurrent and overvoltage protection are provided.

III.Main Configuration

Load Frame:Double-column,high rigidity:Overall test frame rigidity≥300KN/mm,precision ball screw

Drive System:AC servo speed-regulating motor and driver

Measurement and Control System:Fully digital closed-loop control system

1)Load Measurement System

2)Displacement Measurement System

3)Deformation Measurement System

Force sensor:200kN

Digital dial indicator:Resolution:0.001

Pressure-resistant fittings:Upper pressure plateΦ150mm&Lower pressure plateΦ220mm

Data cable,computer,color inkjet printer

Technical documents:Instruction manual,packing list,certificate of conformity,service order Stress-resistant
