This equipment is a commonly used high-temperature device in laboratories and industries, primarily used for processes such as heating, sintering, annealing, quenching, and heat treatment of materials at high temperatures. It provides a stable and controllable high-temperature environment within a sealed, insulated furnace.

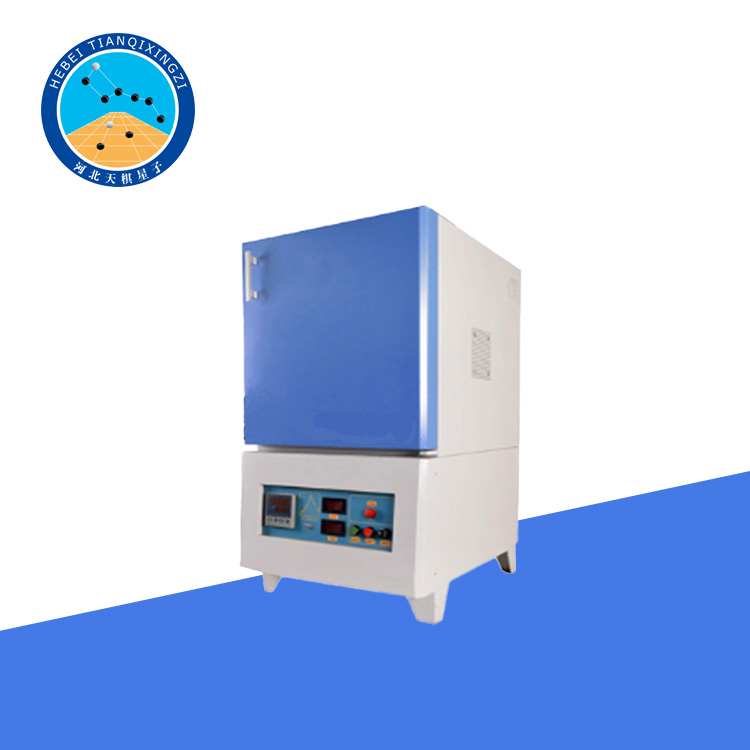

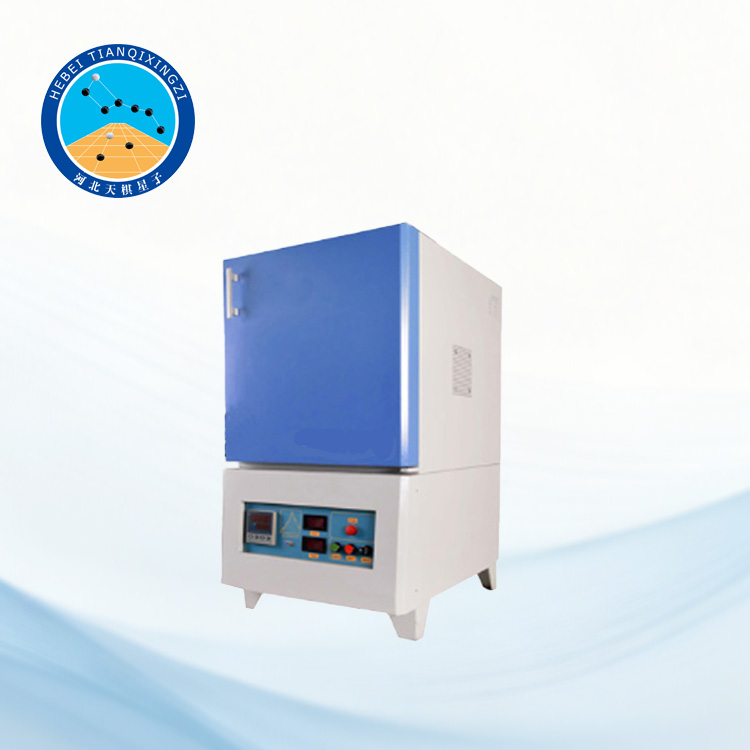

High Temperature Muffle Furnace

Model:TGSYJ-1

I.Product Introduction

This electric furnace is a periodic operation type of equipment,widely used in the hot pressing sintering process of materials such as cemented carbide,functional ceramics,and powder metallurgy under high temperature and high vacuum conditions.It can also be used for hot pressing forming and sintering in a gas-filled protective environment.The design and manufacture of the equipment strictly comply with the safety requirements of IEC 60519-1:2020 and IEC 61010(and its sub-parts),ensuring safety and reliability under high temperature,high vacuum,and special atmosphere conditions.

II.Technical Parameters

1.Furnace Chamber Dimensions(mm):400X400X500

2.Voltage/Power:380V/20KW

3.Maximum Temperature:1400℃

4.Rated Temperature:≤1300℃

5.Heating Rate:10℃/Min(Max:20℃/Min)

6.Net Weight(KG):200KG

III.Product Features

1.Temperature Control Safety:Equipped with over-temperature protection,thermocouple break protection,and leakage protection,the equipment operates safely and reliably.

2.Lid Opening Protection:The furnace is equipped with a limit switch;when the furnace door is opened,the power is automatically cut off,effectively ensuring user safety.
