This instrument can be used to evaluate the abrasion resistance of raised pavement marks under simulated vehicle rolling and sand abrasion conditions, ensuring that the test results comply with domestic and international specifications and engineering acceptance standards.

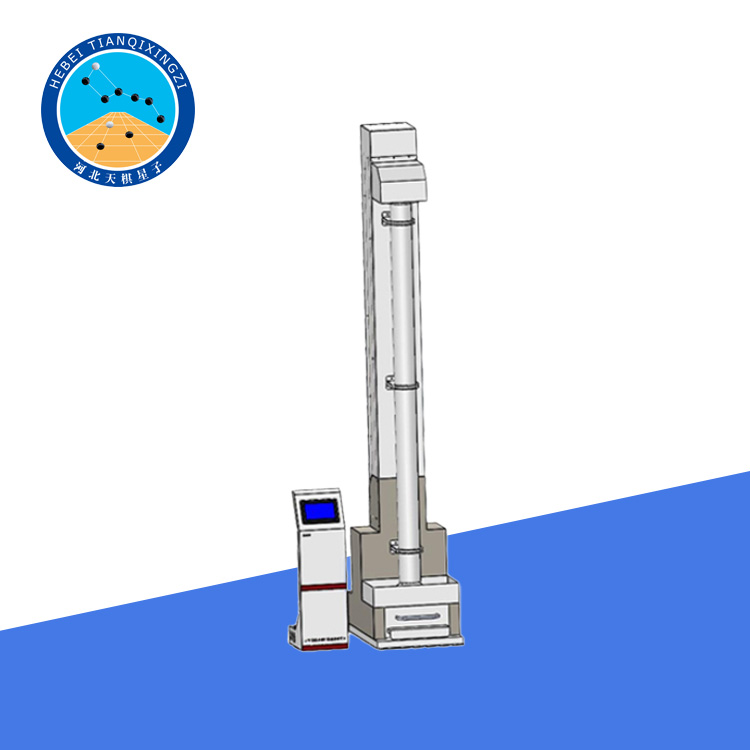

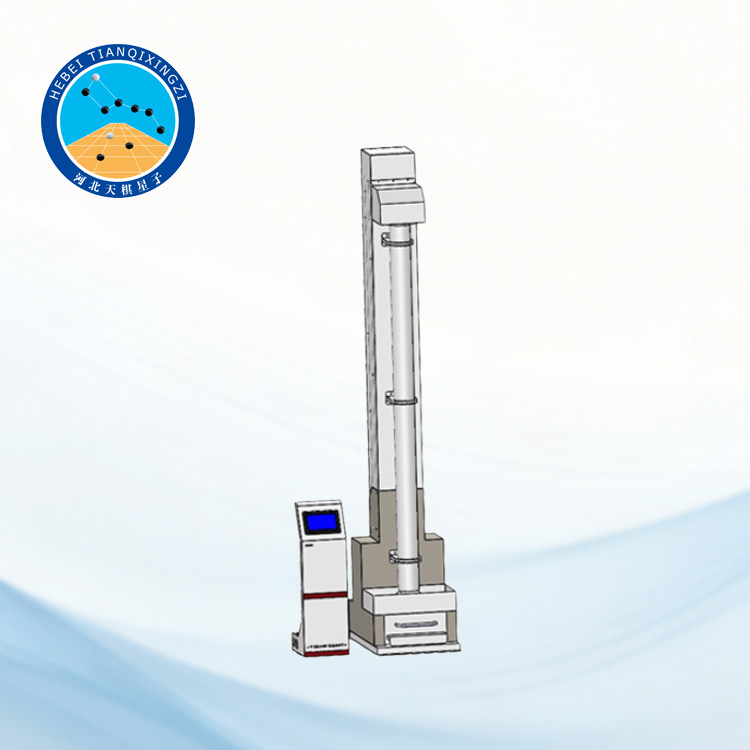

Raised pavement marker abrasion resistance tester

Model:LJLMN-1

I. Product Introduction

The Raised Pavement Marker Abrasion Resistance Testing Machine is used to test the abrasion resistance of raised pavement marks installed on roads.It evaluates the surface abrasion resistance of the test sample using the falling sand method.This instrument is mainly suitable for A1 and A2 class raised pavement marks;A3 class raised pavement marks and raised pavement marks installed in other locations can also be used as a reference.It is an essential testing instrument for research institutes,quality inspection departments,and raised pavement mark manufacturers.

It conforms to the test method for abrasion resistance of raised pavement marks in Appendix B of GB/T 24725-2009"Raised Pavement Markers",and also meets the relevant requirements of international standards such as ASTM D4280—Standard Specification for Raised Pavement Markers,ASTM D4383—Standard Specification for Plowable,Raised,Retroreflective Pavement Markers,ASTM D968—Test Methods for Abrasion Resistance of Organic Coatings by Falling Abrasive(Falling-Sand Test)and EN 1463(Part 1&Part 2)—Road marking materials—Retroreflecting road studs.

II. Working Conditions

1.Ambient temperature:10℃-40℃;

2.Ambient relative humidity:30%-80%;

3.Environment free from vibration and corrosive media;

4.Properly fixed installation on a stable foundation;

5.No strong magnetic field interference or strong convective air currents during operation;

Instrument Dimensions and Weight:

1.Control Unit:(L*W*H)450*400*1105mm;

2.Testing Unit:(L*W*H)780*1050*3700mm

III. Technical Parameters

Sand Transport Speed:(0.4-1)kg/min

Test Station:1 station

Material Inspection Method:(0-3)kg

Resolution:0.001 kg

Power Supply Requirements:220VCA/50HZ/0.3KW
