The Concrete Specific Heat Capacity Tester is designed for accurately measuring the specific heat capacity of concrete. It features touch-screen control, automatic temperature tracking, real-time curve display, historical data review, and stable, reliable testing performance. It is suitable for concrete laboratories, research institutes, and construction material testing applications.

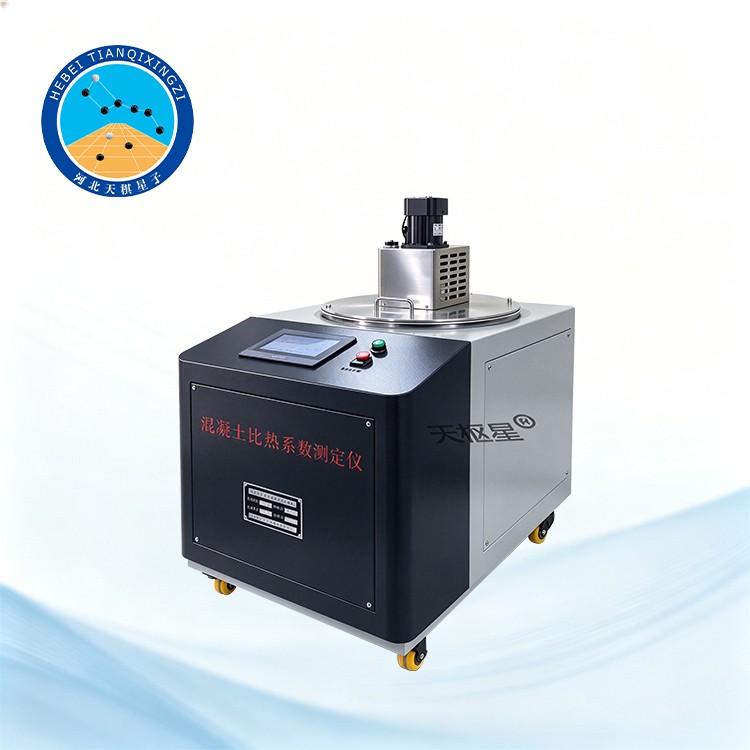

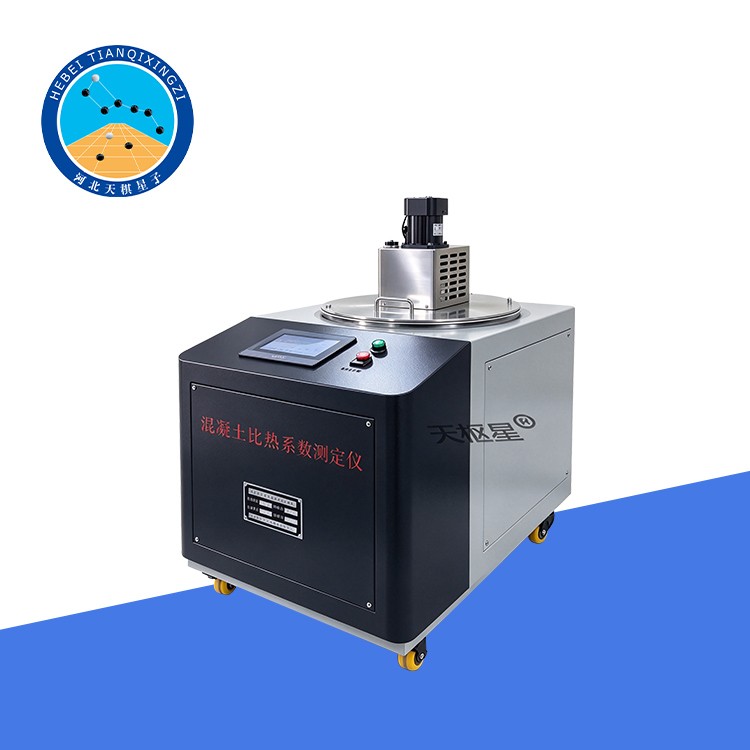

Concrete Specific Heat Capacity Tester

Model: TDJG329-B3

I. Product Introduction

This instrument is designed in accordance with the test methods and relevant parameters specified in DL/T 5150-2017, Test Code for Hydraulic Concrete, SL 352-2020, Test Code for Hydraulic Concrete, and GB/T 50081-2019, Standard for Test Methods of Physical and Mechanical Properties of Concrete.

The instrument features touch-screen control, offering easy operation, stable and reliable testing performance, automatic temperature tracking, real-time display of temperature curves, historical curve review, and high testing accuracy. It is a specialized instrument designed for determining the specific heat capacity of concrete.

II. Technical Specifications

1. Temperature control accuracy: ≤±0.1°C

2. Power supply voltage: 220V, 50Hz

3. Thermal insulation chamber: Φ550 × 650 mm

4. Automatic control via touchscreen

5. Specimen dimensions: Φ200 × 400 mm

6. Instrument weight: 100 kg

7. Environmental conditions: Temperature 0–40°C; Relative humidity <90%

8. Instrument overall dimensions: 1030 × 650 × 970 mm

III. Product Features

1. Automatic Temperature Tracking

The tester automatically tracks temperature changes during the test, helping maintain stable testing conditions and improving measurement accuracy.

2. Touch-Screen Operation

The intuitive touch-screen interface makes parameter setting and test operation simple and convenient, reducing the need for manual intervention.

3. Real-Time Data Monitoring

Test data and temperature curves can be displayed in real time, allowing operators to monitor the testing process and identify temperature changes promptly.

4. Historical Data Review

The system supports the review of historical temperature curves and test data, making it convenient for data analysis, comparison, and test record management.

5. Stable and Reliable Performance

The instrument is designed with a temperature-controlled and insulated testing chamber to provide stable testing conditions for concrete specific heat capacity measurements.

IV. Applications

The Concrete Specific Heat Capacity Tester is suitable for determining the specific heat capacity of concrete in laboratory testing and research. It can be used in concrete laboratories, construction material testing centers, universities, research institutes, hydraulic engineering laboratories, and quality control departments.

The test results can provide useful data for the study of the thermal properties of concrete, concrete mix design, thermal analysis, and engineering research.

V. Testing and Data Management

During testing, the instrument automatically monitors and records temperature changes. The temperature curve is displayed on the touchscreen in real time, allowing users to observe the test process conveniently. Historical test curves can also be reviewed for subsequent data analysis and comparison.

With automatic temperature tracking and touchscreen control, the instrument helps reduce manual operation and provides a convenient solution for routine concrete thermal property testing.
