The Fully Automatic Concrete Setting Time Tester is designed to determine the setting time and penetration resistance of fresh concrete and mortar. With automated penetration testing, intelligent data analysis, and PC-based data processing, it provides accurate and efficient testing for laboratories, quality control, and construction applications.

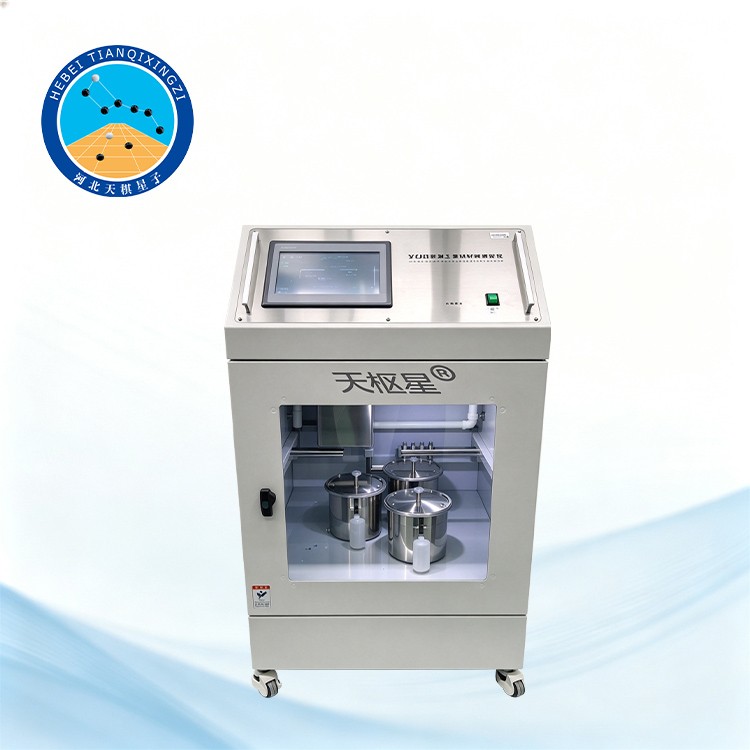

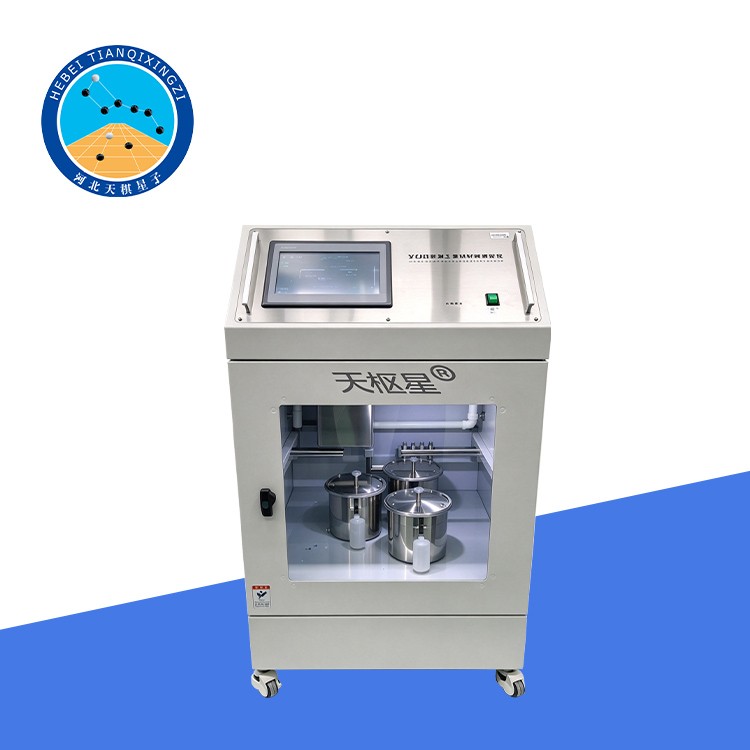

Fully Automatic Concrete Setting Time Tester

Model: TDJT756-4

I. Product Overview

The Fully Automatic Concrete Setting Time Tester is an automated instrument designed for determining the setting time of concrete. It mainly consists of a main testing unit with embedded hardware and software, together with PC-based data processing software. The main unit is equipped with a high-performance embedded industrial computer system and a reliable WinCE operating system. It automatically and accurately measures the variation and development of the penetration resistance of concrete and mortar over time and generates test data files. The accompanying PC data processing software provides functions for data analysis, graphical presentation, test report generation, data export, and printing.

Reference Standards: ASTM C403/C403M, EN 480-2

II. Applicable Standards

GB/T 50080-2016 — Standard for Test Method of Performance of Fresh Concrete

SL 352-2006 — Test Code for Hydraulic Concrete

DL 5150-2001 — Test Code for Hydraulic Concrete

JTG E30-2005 — Test Methods of Cement and Cement Concrete for Highway Engineering

GB/T 50119 — Technical Code for Application of Concrete Admixtures

Reference Standards: ASTM C403/C403M, EN 480-2

III. Product Features

1. Advanced Technology and Innovative Design

This fully automatic tester incorporates multiple proprietary innovative technologies to achieve fully automated testing of the setting time and penetration resistance characteristics of concrete and mortar throughout the entire testing process. It provides a high-quality, convenient, and practical testing solution for scientific research, inspection, and quality control.

2. Unattended Operation and Convenient Testing

Once the prepared specimen is placed in the instrument, the entire testing process is automated, including removing bleeding water, opening and closing the specimen cover, penetration testing, changing penetration needles, cleaning, and result analysis. No manual supervision is required, significantly reducing labor requirements and making the testing process more efficient and convenient.

3. Intelligent Testing

Based on the measured penetration resistance values, the system automatically analyzes and determines appropriate penetration intervals according to the preset testing strategy. It can also predict preliminary initial and final setting time results several hours before the test is completed.

4. Minimizing Human Measurement Errors

The penetration speed and depth are precisely controlled, resulting in minimal overall measurement error. The automated operation helps eliminate errors caused by variations in penetration speed, penetration depth, and manual reading during conventional testing.

5. Wide Range of Operating Environments

The tester can be used in standard laboratory environments, standard curing rooms, and on-site construction environments under the same conditions as the concrete being tested.

IV. Testing Principle

The tester determines the setting time of fresh concrete and mortar by monitoring the development of penetration resistance over time. During the test, the penetration needle is automatically controlled to penetrate the specimen at preset intervals. The system records the penetration resistance data and analyzes the changing trend to determine the initial and final setting times.

V. Main Applications

The TDJT756-4 is suitable for concrete and mortar testing in:

 • Concrete and construction material laboratories

 • Scientific research institutions

 • Quality inspection and testing centers

 • Concrete production and quality control departments

 • Construction projects and on-site testing

 • Admixture performance evaluation

It can be used for testing the setting characteristics of fresh concrete and mortar and evaluating the influence of materials and admixtures on setting behavior.

VI. Product Advantages

Fully automatic penetration resistance testing;

Intelligent control and data analysis;

Automatic recording and processing of test data;

Reduced influence from manual operation;

PC-based test report generation;

Suitable for laboratory and field applications;

Designed for concrete and mortar setting time testing.
